FLANGE

  • FLANGE
  • FLANGE
  • FLANGE

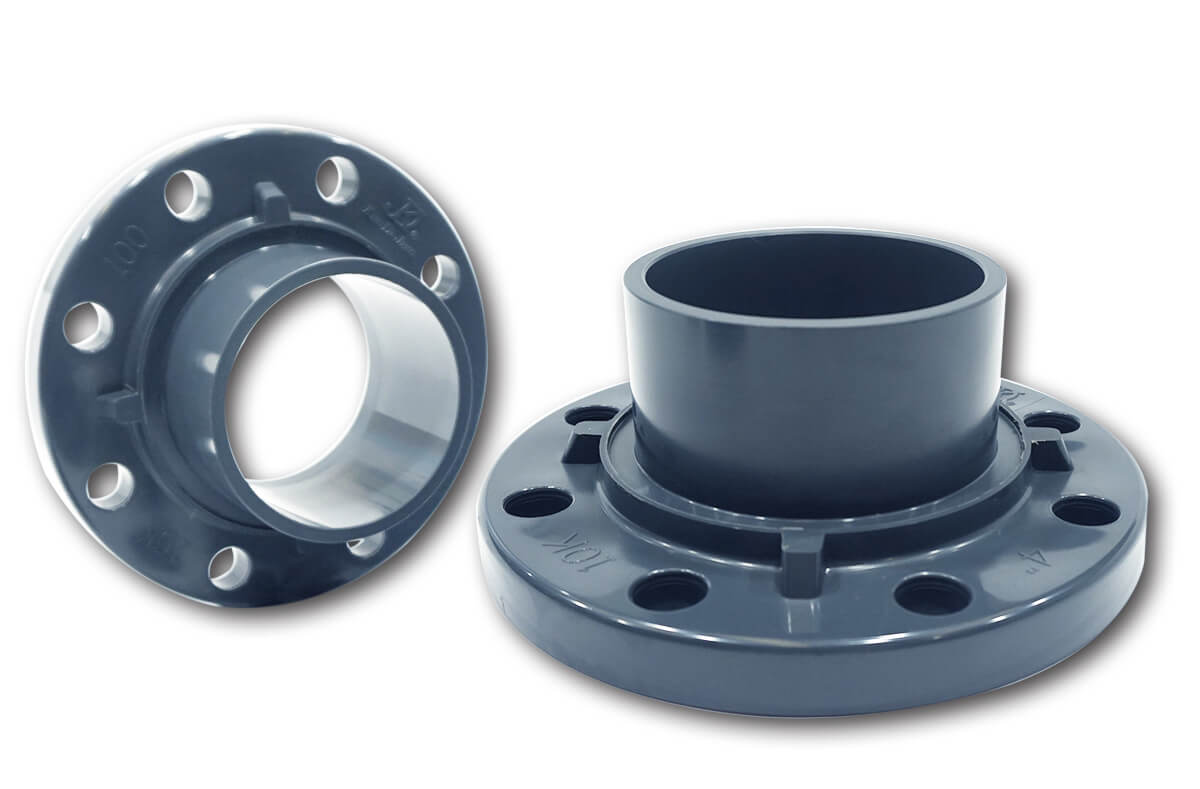

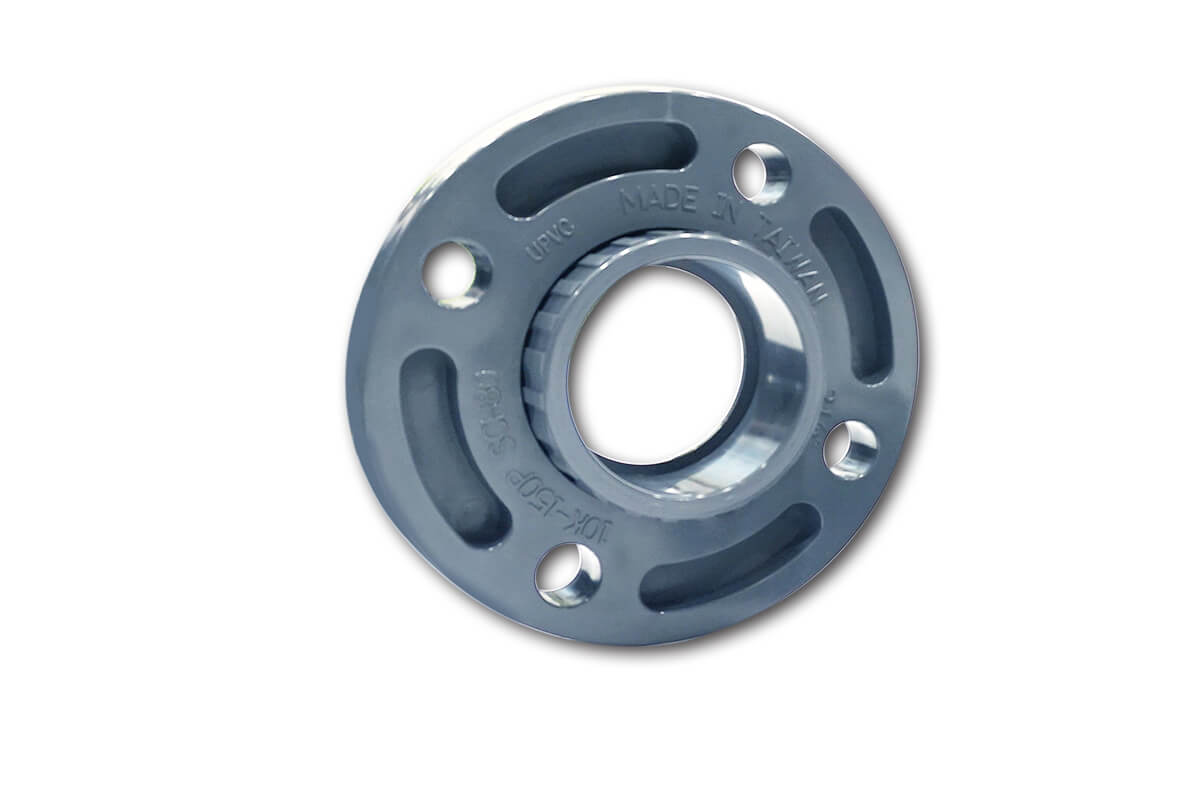

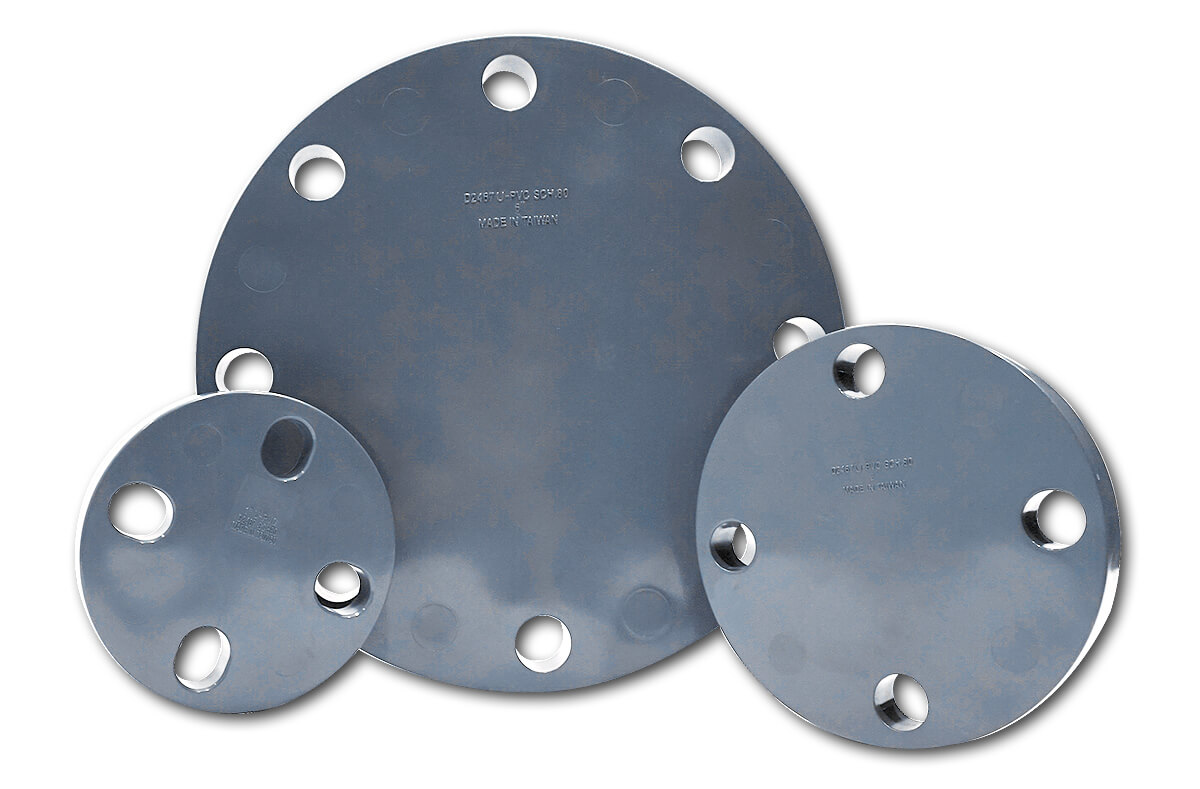

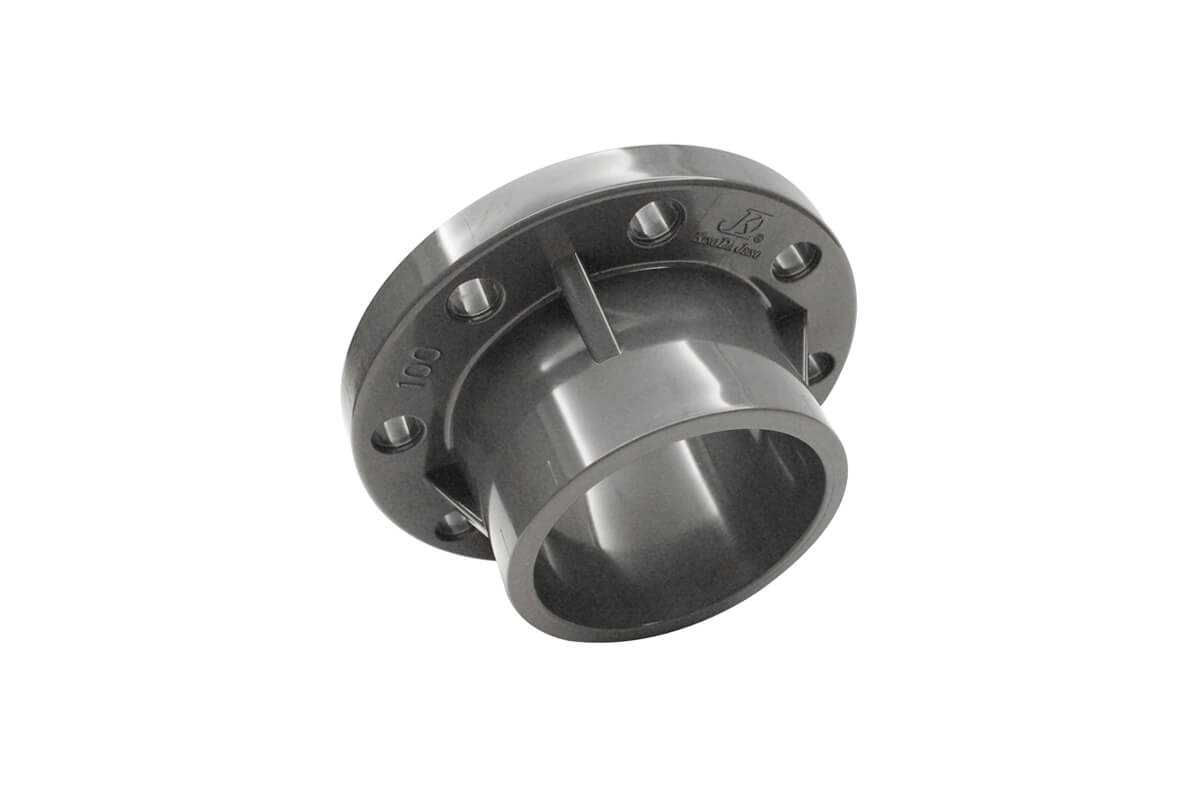

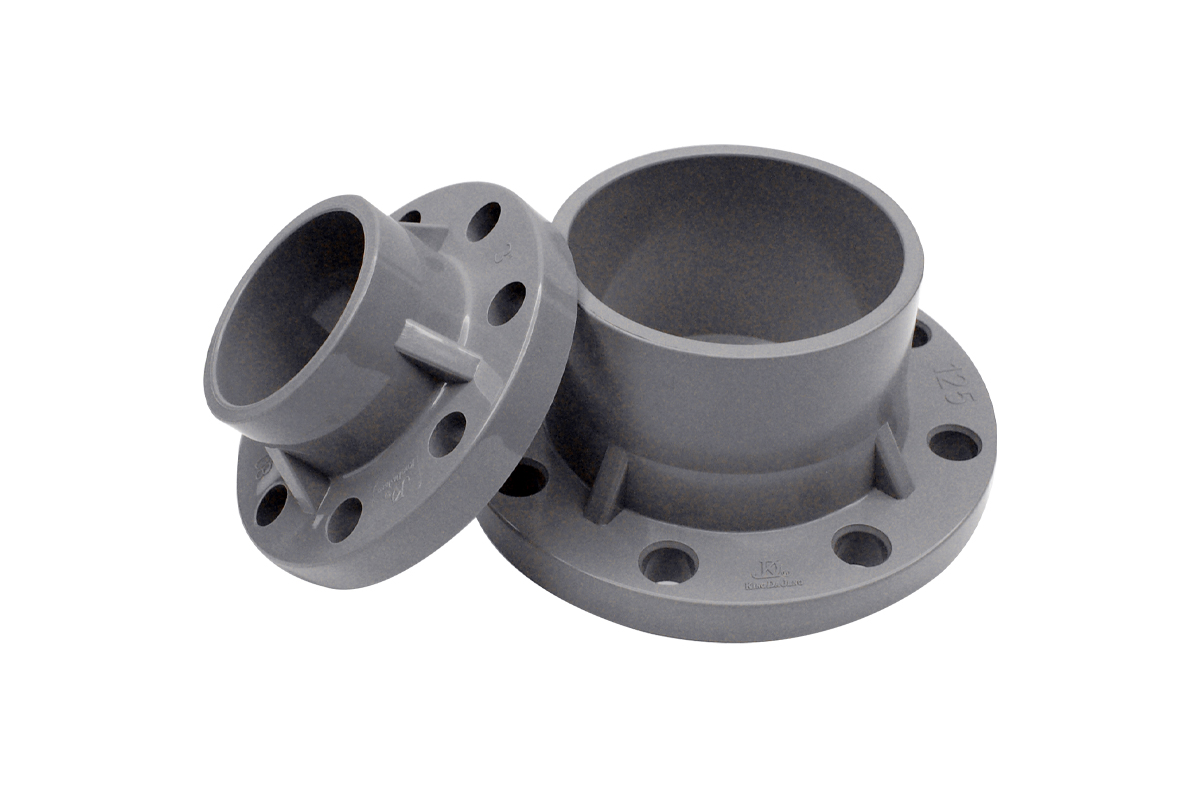

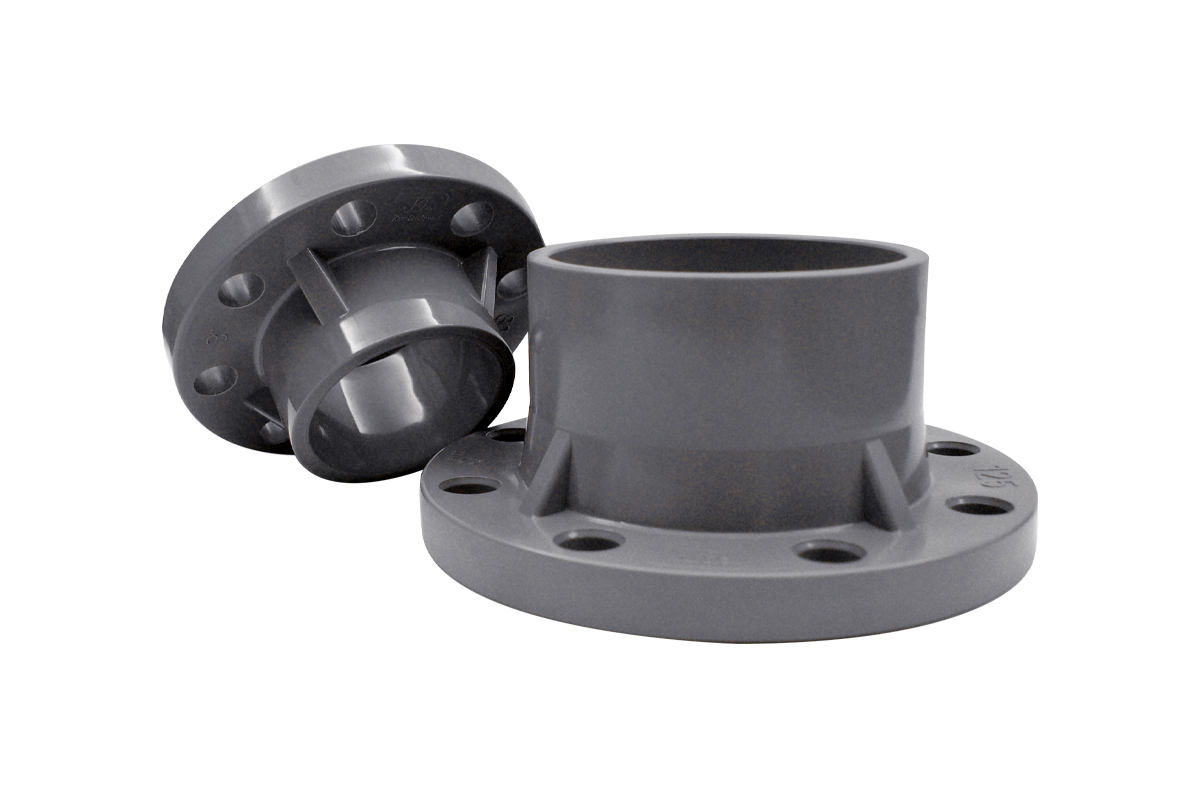

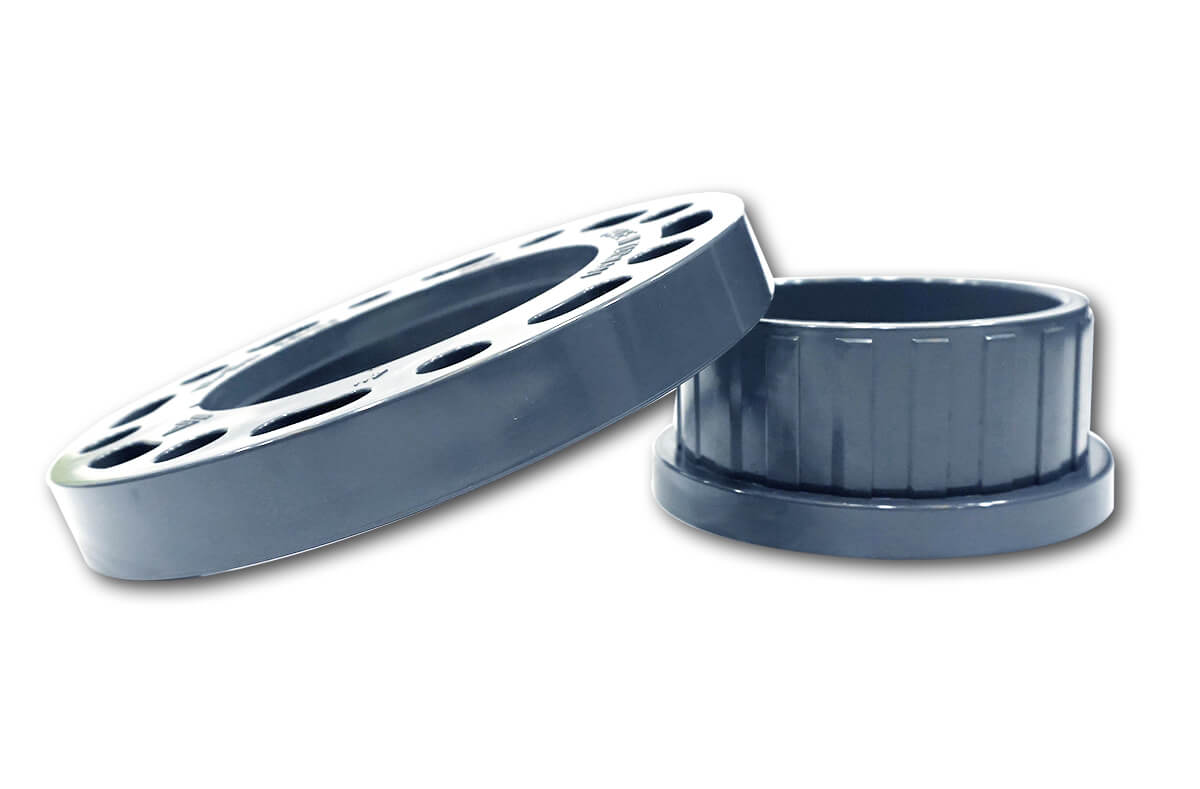

FLANGE

Applocations：

  • Durable one piece molded
  • Perfect combination with butterfly valve
  • Suitable for chemical pipe or water distribution pipe-line systems
Inquiry
Specifications
Model No Flange
Size 1/2" to 12"
Standard ANSI, DIN, JIS
Material PVC, UPVC
SIZE NOM. 10mm
(3/8”)		 15mm
(1/2")		 20mm
(3/4")		 25mm
(1")		 32mm
(1-1/4")		 40mm
(1-1/2")		 50mm
(2")		 65mm
(2-1/2")

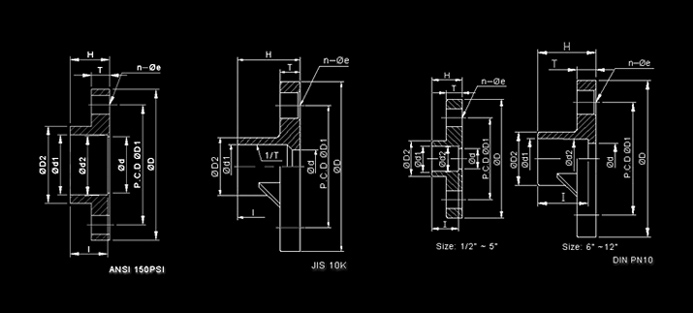

ANSI ØD 88.6 97.5 108 117 127 152 179
ØD1 61 70 79 89 98 121 140
ØD2 33 40 48 57 65 78 92
Ød 15 25 31 40 46 57.5 70
Ød1 21.54 26.87 33.65 42.42 48.56 60.63 73.38
Ød2 21.23 26.57 33.27 42.04 48.11 60.17 72.85
H 25 29 31.7 35 38 41.3 47.6
T 11 12 14 16 17.5 18.5 21.5
I 22.22 25.4 28.58 31.75 34.93 38.1 44.45
n-Øe 4-16 4-16 4-16 4-16 4-16 4-19 4-19
DIN ØD 95 105 115 140 150 164 185
ØD1 65 75 85 100 110 125 145
ØD2 28 33 41 50 61 76 90
Ød 16 21 28 36 45 57 69.5
Ød1 20.3 25.3 32.3 40.3 50.3 63.3 75.35
Ød2 19.9 24.9 31.9 39.9 49.9 62.9 74.9
H 24 21.5 24.5 28 33.5 41 46
T 12.5 14 14 14 16 16 16
I 21 19 22 26 31 38 43.5
n-Øe 4-14 4-14 4-14 4-18 4-18 4-18 4-18
JIS ØD 90 96.5 100 125.5 135 140.5 155 175.5
ØD1 65 70 75 90 100 105 120 140
ØD2 26 31.5 35 42.5 48.5 61 74 90
Ød 15 18 22 25 30 41 53 67
Ød1 18.4 22.4 26.45 32.55 38.6 48.7 60.8 76.6
H 30 35 40 47 50.5 61.5 71 70
T 14 14 15 15 16 16 20 22
I 26 30 35 40 44 55 63 61
n-Øe 4-15 4-15 4-15 4-19 4-19 4-19 4-19 4-19
1/T 1/30 1/34 1/34 1/34 1/34 1/37 1/37 1/48
SIZE NOM. 80mm
(3")		 100mm
(4")		 125mm
(5")		 150mm
(6")		 200mm
8”		 250mm
10”		 300mm
12”
ANSI ØD 190 228.6 254 280 342 405 480
ØD1 152 191 216 241 298 362 432
ØD2 109 139 167 186 255 291 343
Ød 78 111.5 136 166 209 246 296
Ød1 89.31 114.76 141.81 168.83 219.84 273.81 324.61
Ød2 88.7 114.07 141 168 218.7 272.67 323.47
H 50.8 61 82.5 142 131 170 173
T 22.5 24.5 28.5 26 30 33 34
I 47.63 57.15 66.7 132 110 155 155
n-Øe 4-19 8-19 8-22 8-22 8-22 12-25 12-25
DIN ØD 200 220 254 280 340 396 445
ØD1 160 180 210 240 295 350 400
ØD2 108 131 167 186 255 290 362
Ød 82 103 136 146.5 215 240 303
Ød1 90.5 110.6 140.85 160.85 226.25 251.45 316.85
Ød2 89.9 109.9 140.05 160.05 225.05 250.05 315.05
H 55 65 82.5 141.5 131 149 182
T 18 18 28.5 26.5 30 32 32
I 50.5 60.5 77 132 119 131 164
n-Øe 8-18 8-18 8-23 8-23 8-23 12-23 12-23
JIS ØD 186 210 250 280 329.5 404.5 445
ØD1 150 175 210 240 290 355 400
ØD2 106 132 158 186 238 289 341
Ød 78 100 126 146.5 196 245 298
Ød1 89.6 114.7 140.8 166 217 267.7 318.7
H 73.5 93 114 141.5 160 167.5 167
T 23 22.5 24.5 26.5 29 31.5 30
I 64 84 104 132 145 155 155
n-Øe 8-19 8-19 8-23 8-23 12-23 12-22 16-25
1/T 1/49 1/56 1/58 1/63 1/50 1/55 1/55
