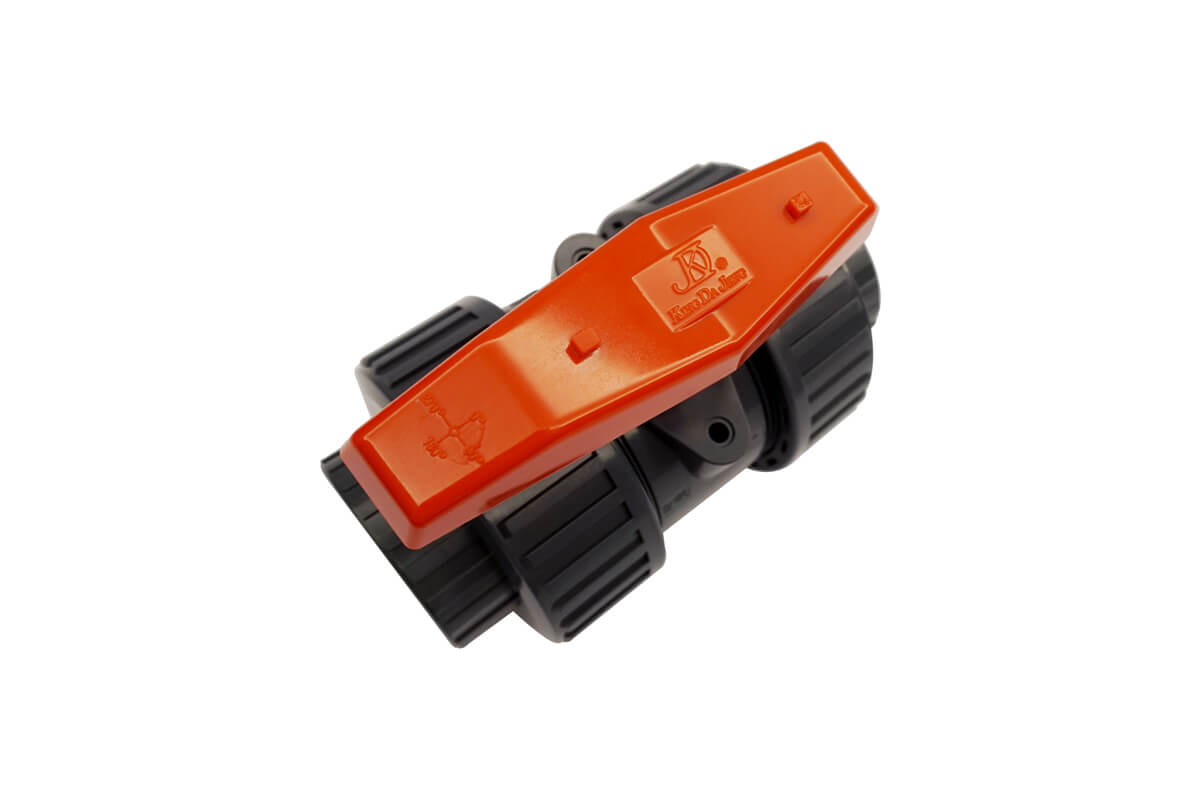

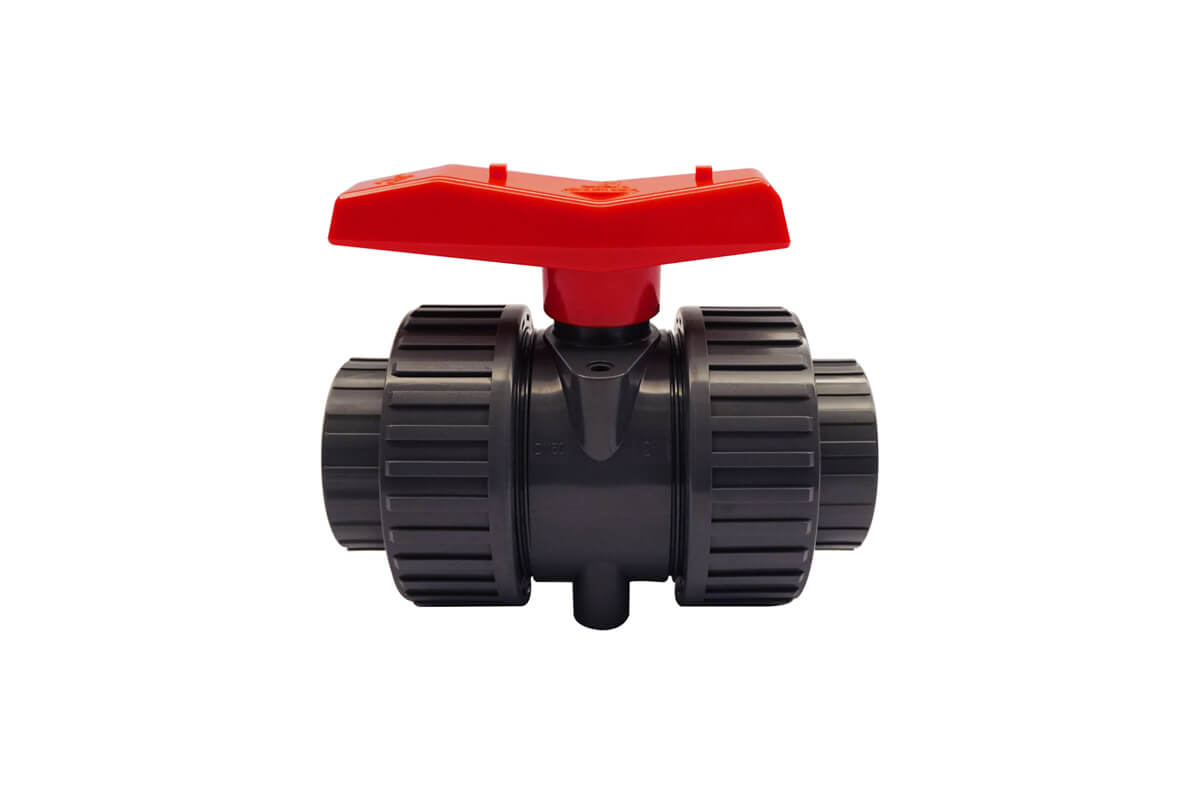

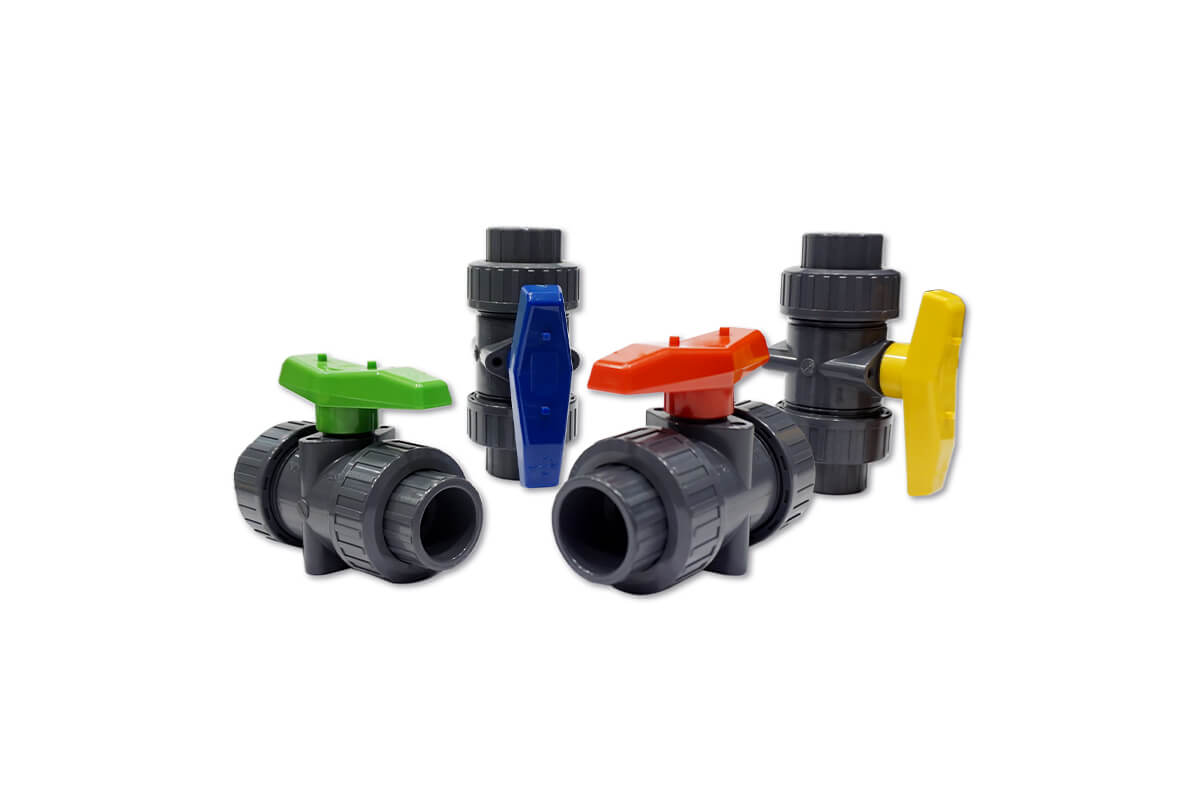

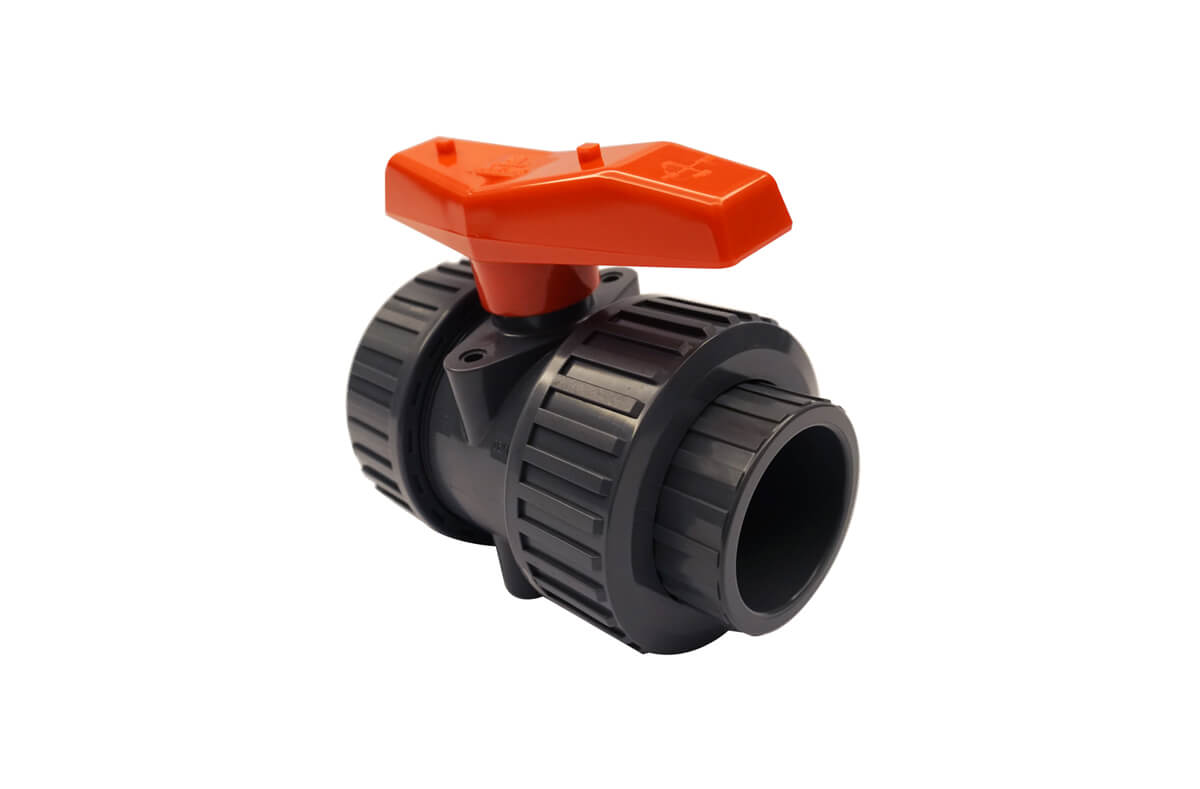

KDJ-500 DOUBLE UNION BALL VALVE

  • DOUBLE UNION BALL VALVE
  • DOUBLE UNION BALL VALVE
  • DOUBLE UNION BALL VALVE

KDJ-500
DOUBLE UNION BALL VALVE

Applocations：

  • Pressure rating: 150 PSI @23°C(73.4°F)
  • Standard port design
  • Adjustable seat tightness
  • Easy to disassemble
  • Less working time for replacement and maintenance
  • Inserted nut type could be installed with Actuator
  • Standard product is without inserted nut
Inquiry
Specifications
Model No KDJ-500
Size 1/2" to 4"
Standard ANSI, BS, CNS, DIN, JIS (Socket) / NPT, BSPT (Threaded)
Material UPVC
Seat PTFE, EPDM, TPR
O-ring EPDM, FPM

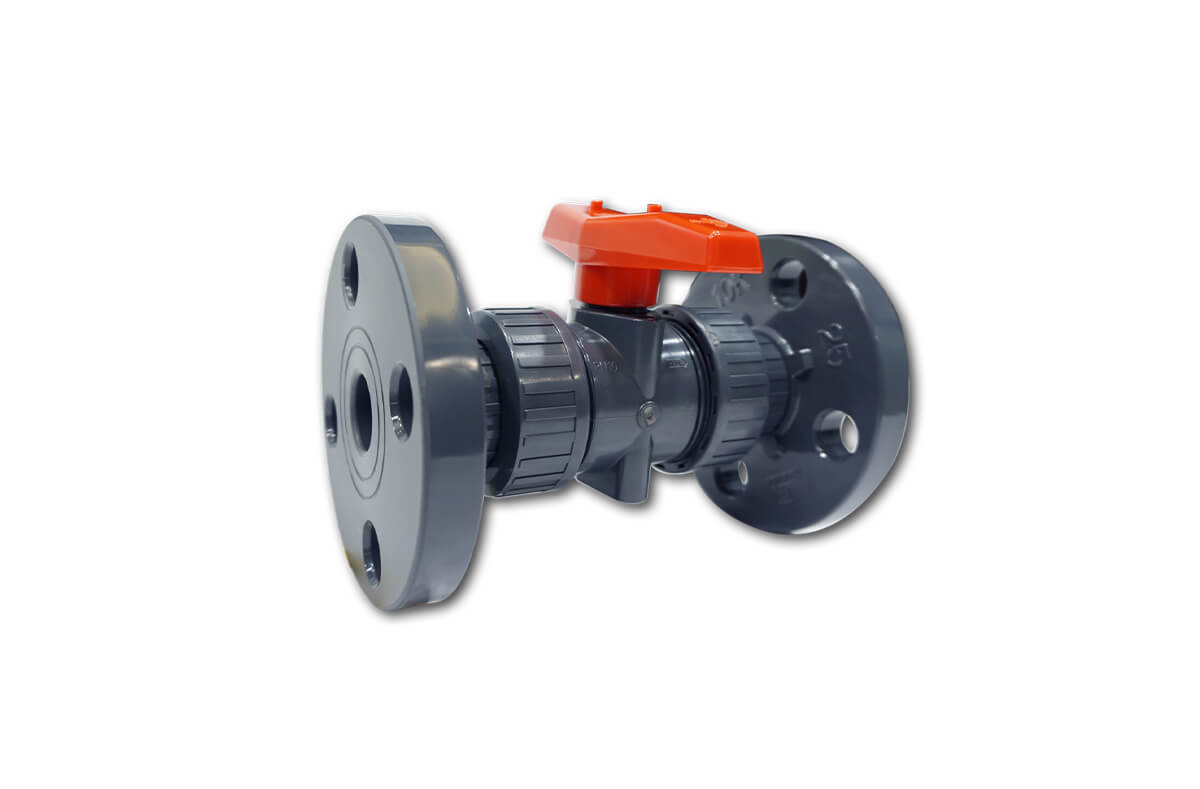

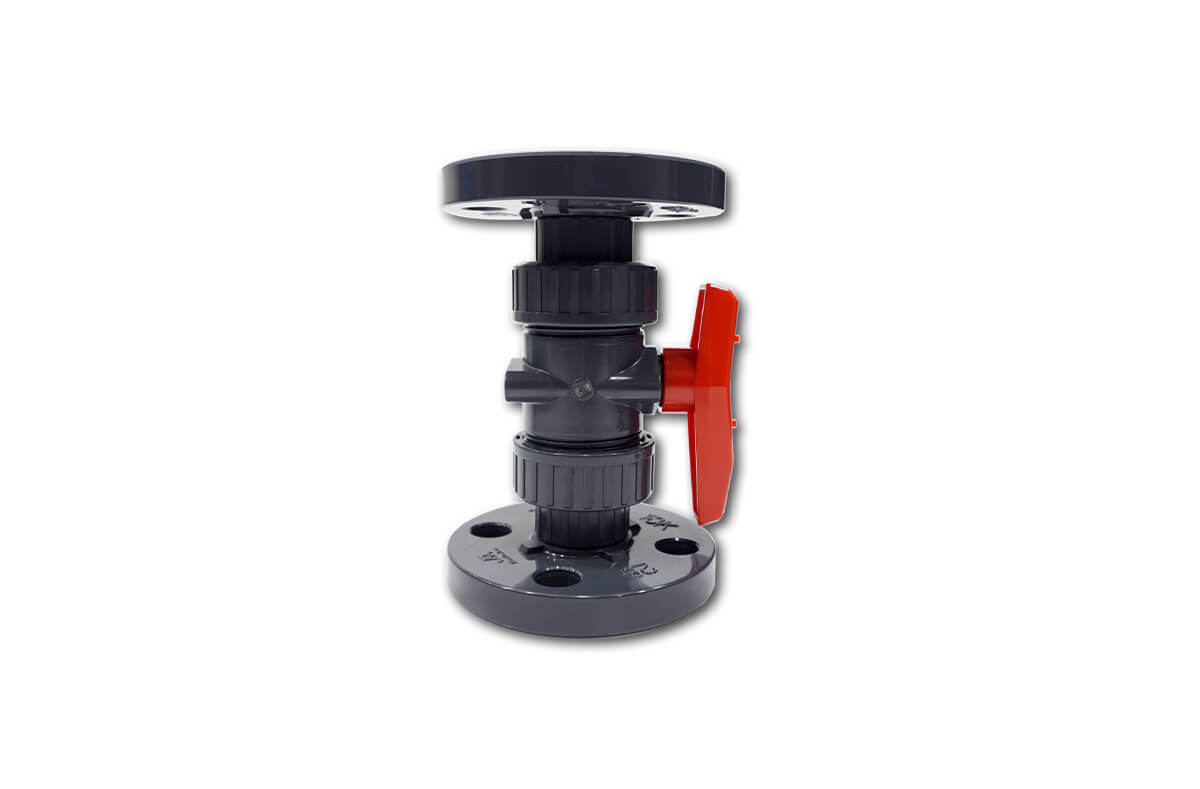

End type Socket, Threaded, Flanged

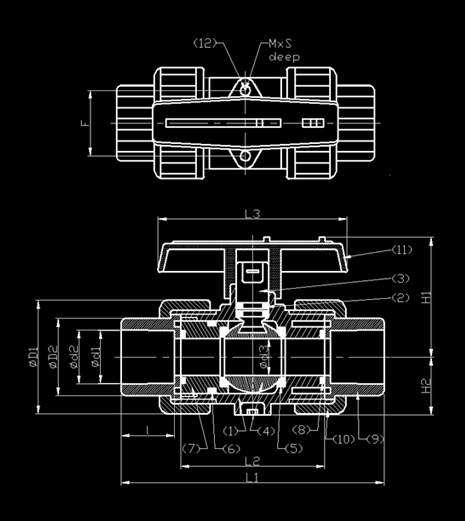

No. Part Material Q'TY
1 Body UPVC 1
2 Stem O-ring EPDM,FPM 2
3 Stem UPVC, ABS 1
4 Ball UPVC, ABS 1
5 Seat Seal PTFE, EPDM, TPR 2
6 Carrier O-ring EPDM,FPM 1
7 Seal Carrier UPVC, ABS 1
8 Union O-ring EPDM,FPM 2
9 End Connector UPVC, ABS 2
10 Union Nut UPVC, ABS 2
11 Handle UPVC, ABS 1
12 Inserted Nut C3604 2.4
SIZE
NOM.		 15mm
(1/2")		 20mm
(3/4")		 25mm
(1")		 32mm
(1-1/4")		 40mm
(1-1/2")		 50mm
(2")		 65mm
(2-1/2")		 80mm
(3")		 100mm
(4")
JIS l 22.2 25.4 28.6 31.8 34.9 38.1 44.45 47.63 57.15
d1 22.3 26.3 32.33 38.43 48.46 60.56 76.6 89.6 114.7
d2 21.7 25.7 31.67 37.57 47.54 59.44 75.87 88.83 113.98
DIN l 16 19 22 26 31 38 44 51 61
d1 20.3 25.3 32.3 40.3 50.3 63.3 75.3 90.3 110.4
d2 20.1 25.1 32.1 40.1 50.1 63.1 75.1 90.1 110.1
BS l 16.5 19.5 22.5 27 30 36 44.45 47.63 57.15
d1 21.5 26.9 33.7 42.4 48.4 60.5 75.5 89.1 114.5
d2 21.3 26.7 33.5 42.2 48.2 60.3 75 88.8 114.1
ANSI l 22.22 25.4 28.58 31.75 34.93 38.1 44.45 47.63 57.15
d1 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.31 114.76
d2 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.7 114.07
d3 13 18 23 30 38 48 61 75 99.5
D1 45 55 66 81 96 119 140 163 210
D2 31 37 44 54 65 78 92 108 145
L1 111 130 145 165 171 200 273 310 330
L2 60 73 78 87 92 112 136 200 220
L3 78 92 100 110 121 147 180 250 280
H1 48 58 65 75.5 88 107.5 116 182 212
H2 20.5 26 33 38 42 53 92 92 113
F 30 33 40 47 52 70 98 98 120
S 7 8 11 11 11 15 21 21 31
M M5 M6 M6 M8 M8 M8 - - -
