UNION

  • UNION
  • UNION
  • UNION

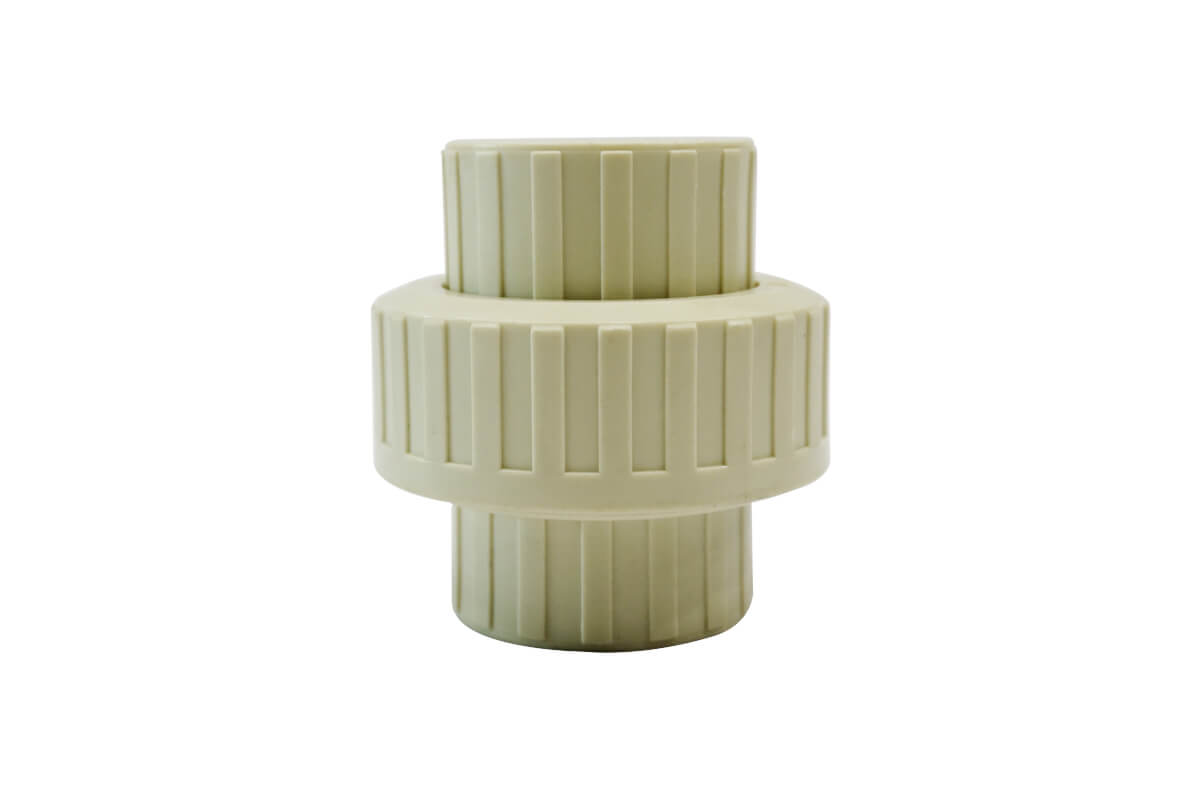

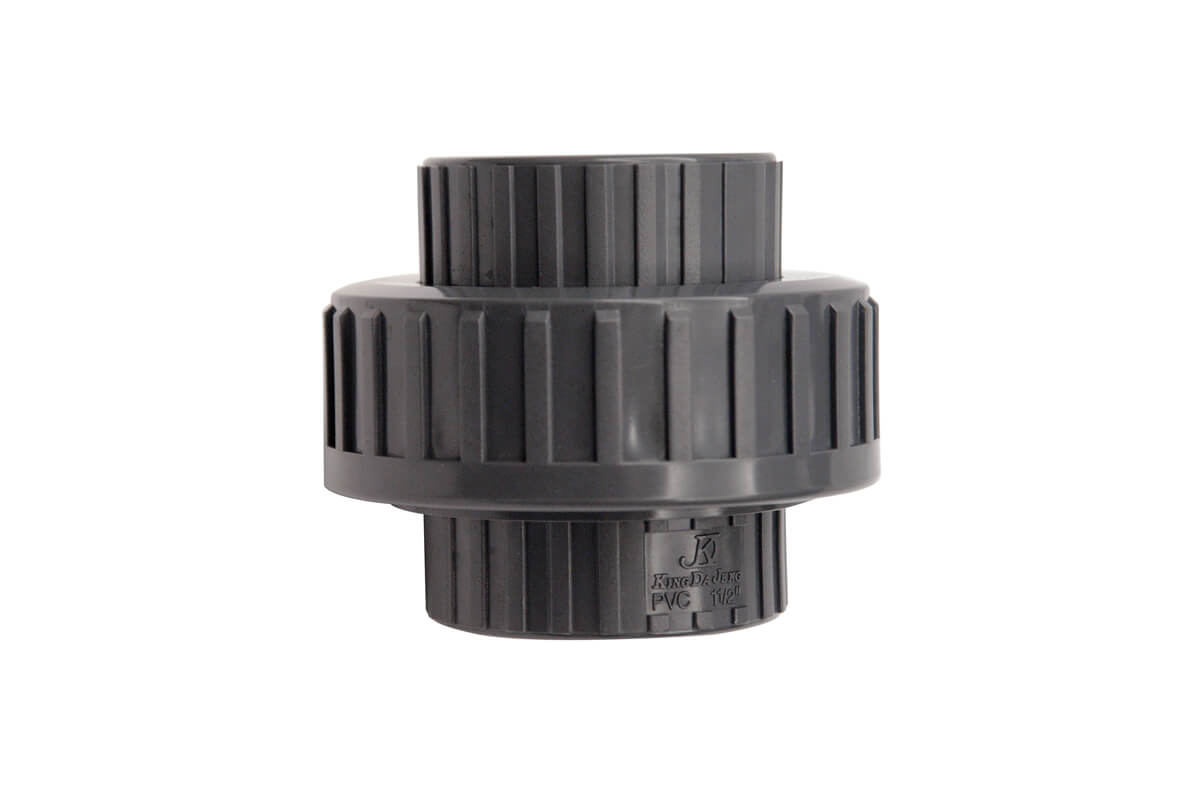

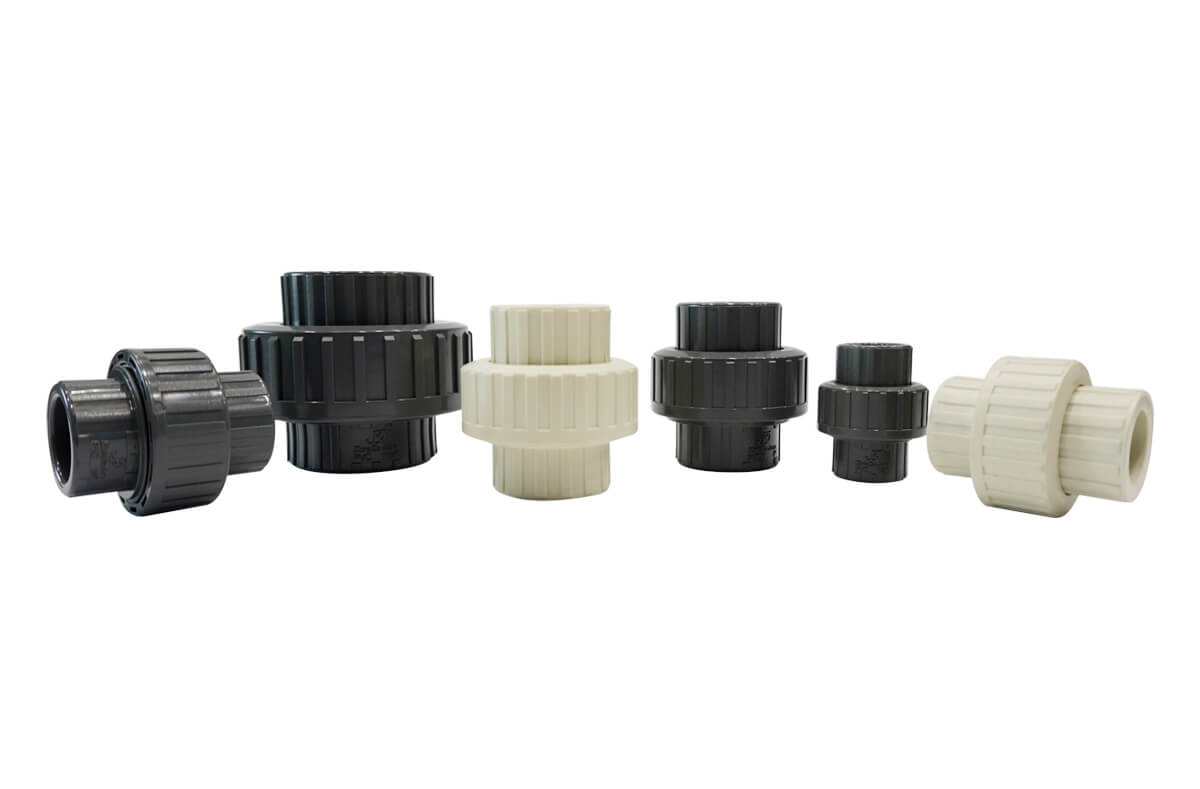

UNION

Applocations：

  • Union is applied to wide range of pipe and plumbing works
  • For use in any general piping application, metal, plastic or cooper pipe
  • Easy to install and suitable for any connections
Inquiry
Specifications
Model No Union
Size 1/2" to 4"
Standard ANSI (SCH40, SCH80) BS, CNS, DIN, JIS
Material UPVC
End type Socket, Threaded

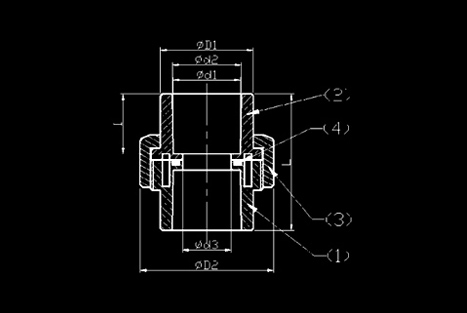

No. Part Material Q'TY
1 Body UPVC 1
2 End Connector UPVC 1
3 Union Nut UPVC 1
4 O-ring EPDM, FPM 1
SIZE 10mm
(3/8")		 15mm
(1/2")		 20mm
(3/4")		 25mm
(1")		 30mm
(1-1/4")		 40mm
(1-1/2")		 50mm
(2")		 65mm
(2-1/2")		 80mm
(3")		 100mm
(4")
JIS l 19.05 22.2 25.4 28.6 31.8 34.9 38.1 44.45 47.63 84
φd1 17.78 21.7 25.7 31.67 37.57 47.54 59.44 75.87 88.83 113.2
φd2 18.4 22.3 26.3 32.33 38.43 48.46 60.56 76.6 89.6 114.7
BS l 14.5 16.5 19.5 22.5 27 30 36 44.45 47.63 57.51
φd1 14.5 16.5 19.5 22.5 27 30 36 44.45 47.63 114.1
φd2 17.3 21.5 26.9 33.7 42.4 48.4 60.5 75.3 89.1 114.5
ANSI l 19.05 22.22 25.4 28.58 31.75 34.93 38.1 44.45 47.63 75
φd1 17.04 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.7 114.1
φd2 17.45 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.31 114.8
DIN l 16 16 19 22 26 31 38 44 51 61
φd1 16.1 20 25 32 40 50 63 75.1 90.1 110.1
φd2 16.3 20 25 32 40 50 63 75.3 90.3 110.4
thd. / in NPT 18 14 14 11.5 11.5 11.5 11.5 8 8 8
BSPT 19 14 14 11 11 11 11 11 11 8
φd3 12 13 18 23.5 30 39 49 63 75 98
φD1 26 31 37 45 54 65 78 91 107 143
φD2 39 46 55 66 82 98 120 139 155 250
L 48 54 62 69 85 87 95 114 126 150
