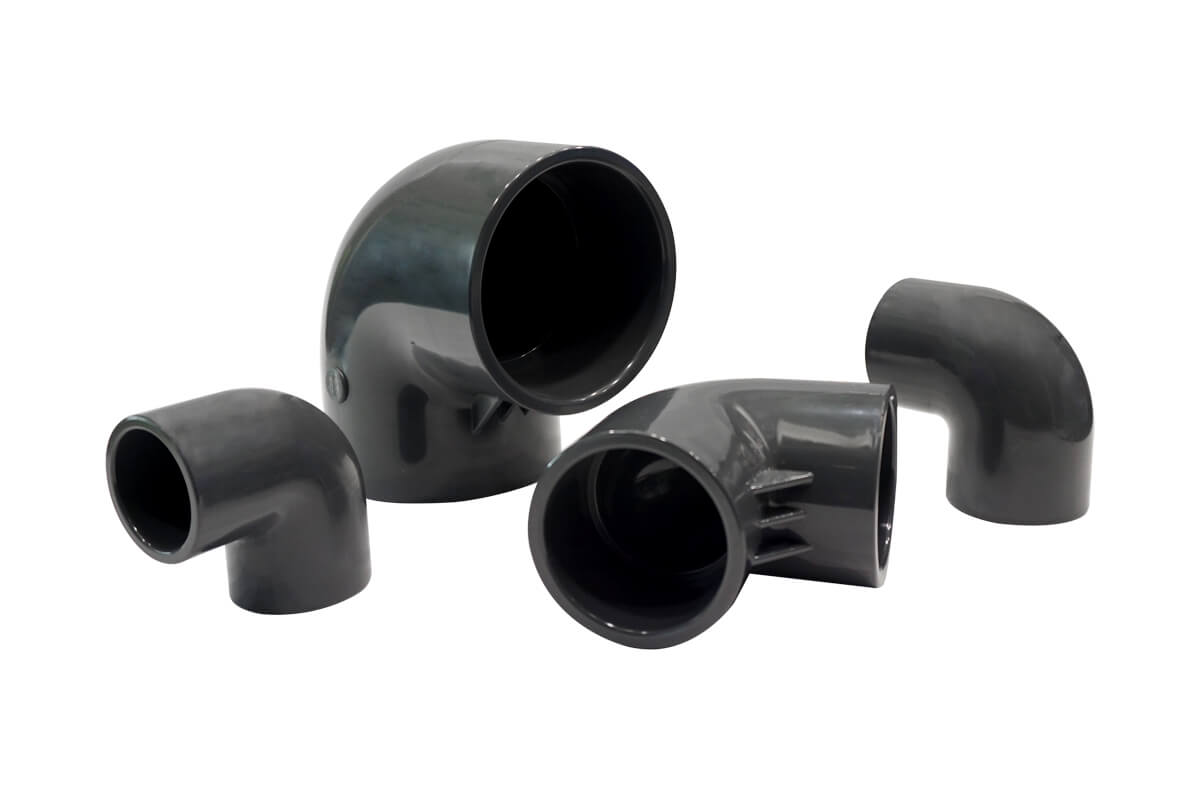

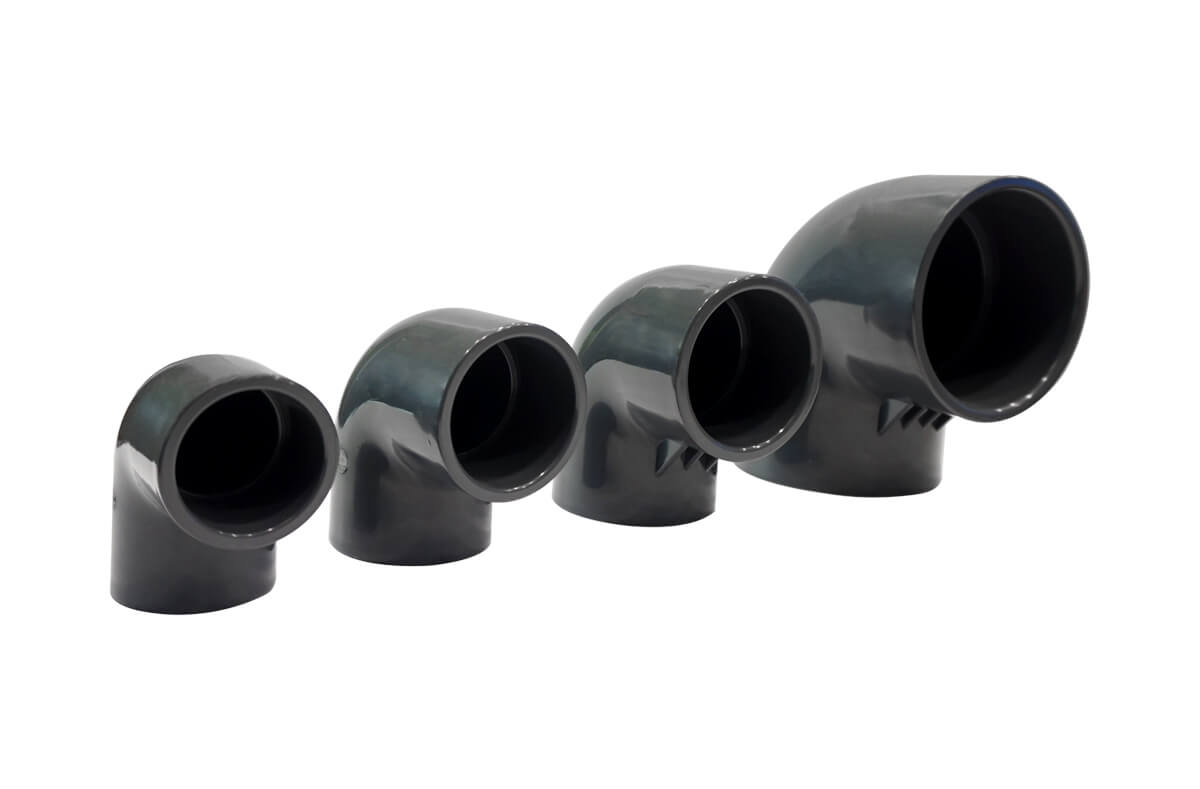

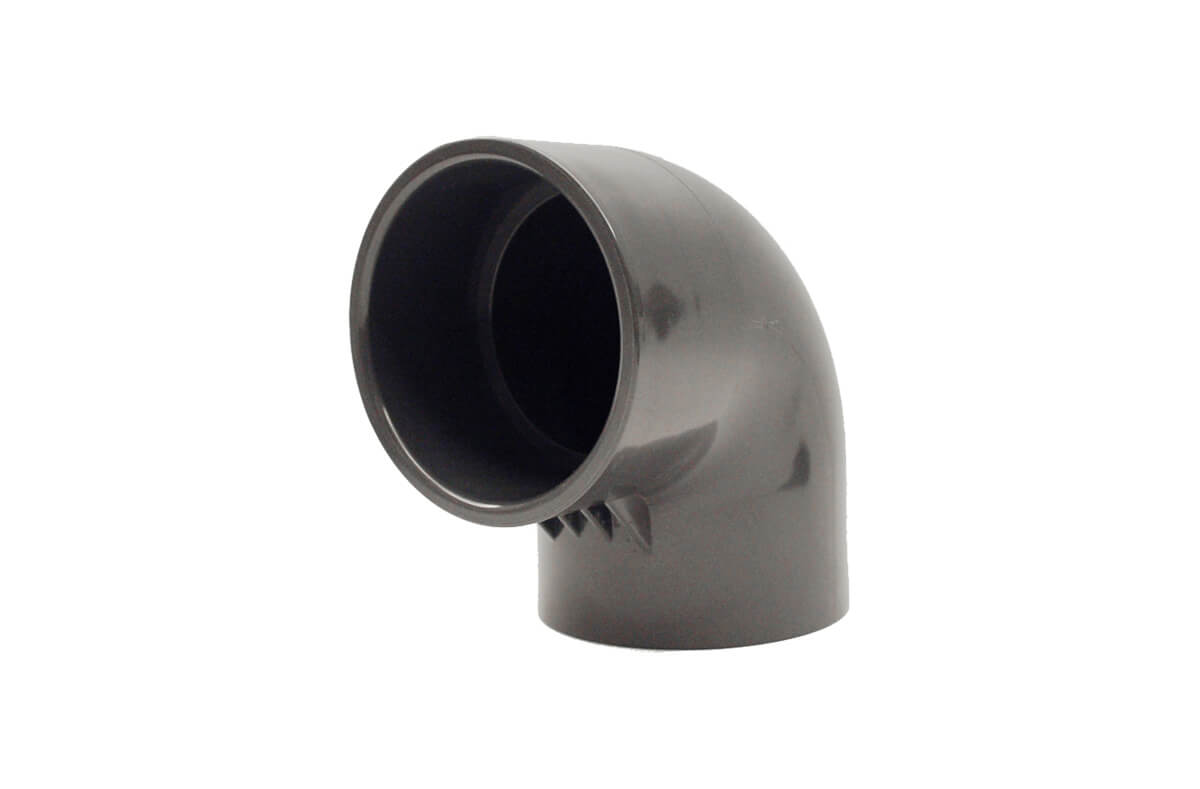

90°ELBOW

  • 90°ELBOW
  • 90°ELBOW
  • 90°ELBOW

90°ELBOW

Applocations：

  • Durable one piece molded
  • Suitable for chemical pipe or water distribution pipe-line systems
  • Non-corrosive and resistant to most chemicals
Inquiry
Specifications
Model No 90L
Size 1/2" to 12"
Standard ASTM (SCH40, SCH80), ASTM Clear series, JIS
Material PVC, UPVC
End type Socket*Socket

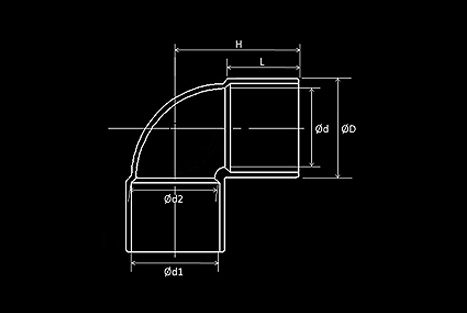

Dimensions SCH80

SIZE D d1 d2 d L H
1/2" 30.5 21.54 21.23 16.5 22.22 35.02
3/4" 38 26.87 26.57 22 25.4 40.7
1" 46 33.66 33.27 28 28.58 46.58
1-1/4" 55 42.42 42.04 35 31.75 54.75
1-1/2" 60 48.56 48.11 43 34.93 60.93
2" 75 60.63 60.17 54 38.1 70.1
2-1/2" 90 73.38 72.85 69 44.45 82.45
4" 133 114.76 114.07 105 57.15 116.15

Dimensions JIS (Drainage)

Part L H
1"x2mm 20 39
1-1/4"x2mm 30 52
1-1/2"x2mm 22 48
2"x2mm 22 48
2"x3mm 25 58
2-1/2"x2.5mm 25 58
2-1/2"x3mm 35 77
3"x3mm 40 88
3-1/2"x3mm 50 102
4"x3.5mm 50 112
5"x3.5mm 65 140
6"x4mm 80 168
8"x7.5mm 100 215
10"x8.5mm 130 269
12"x10mm 150 316

Dimensions JIS (Water supply)

Part e H
16 (1/2") 30 43
20 (3/4") 35 50
25 (1") 40 58
28 (1") 40 60
35 (1 1/4") 44 68
40 (1 1/2") 55 82
50 (2") 63 96
65 (2 1/2") 69 110
80 (3") 80 135
100 (4") 92 152
125 (5") 112 188
150 (6") 140 228
200 (8") 172 288
250 (10") 185 326
300 (12") 260 450
