  4. KDJ-200 BALL VALVE - Stainless Steel Handle

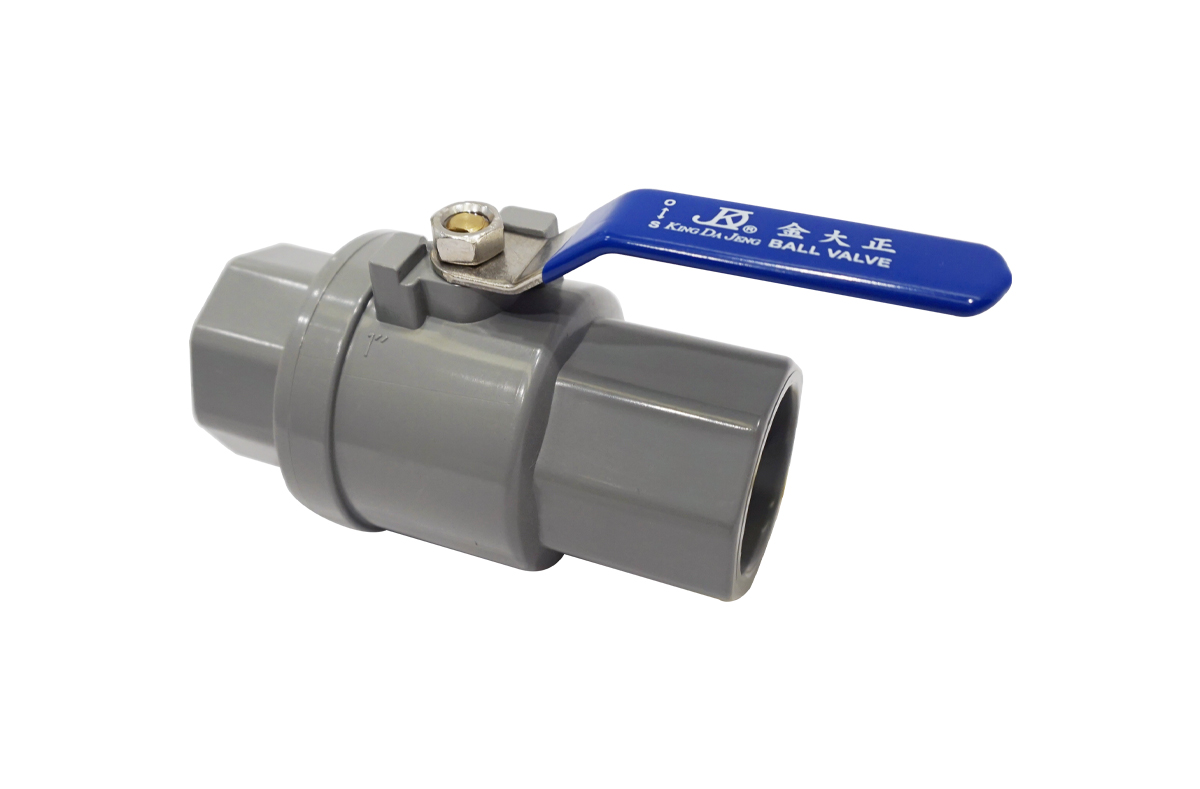

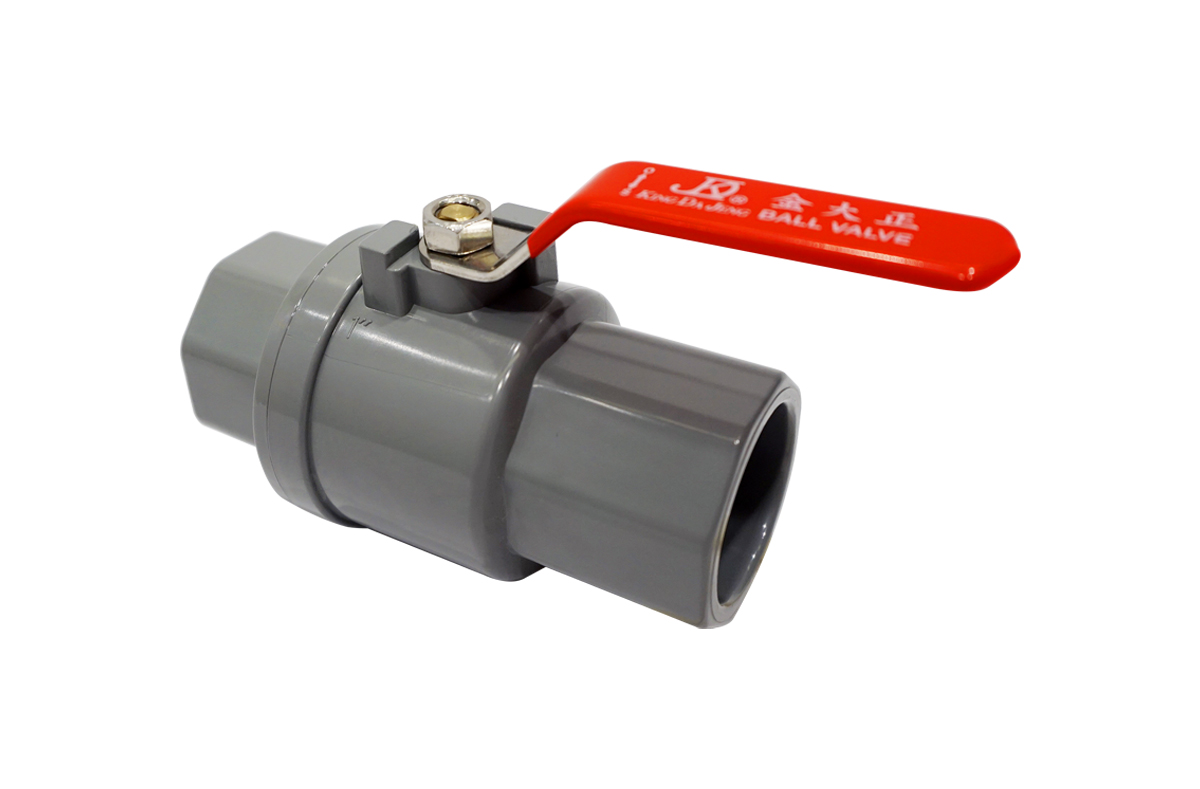

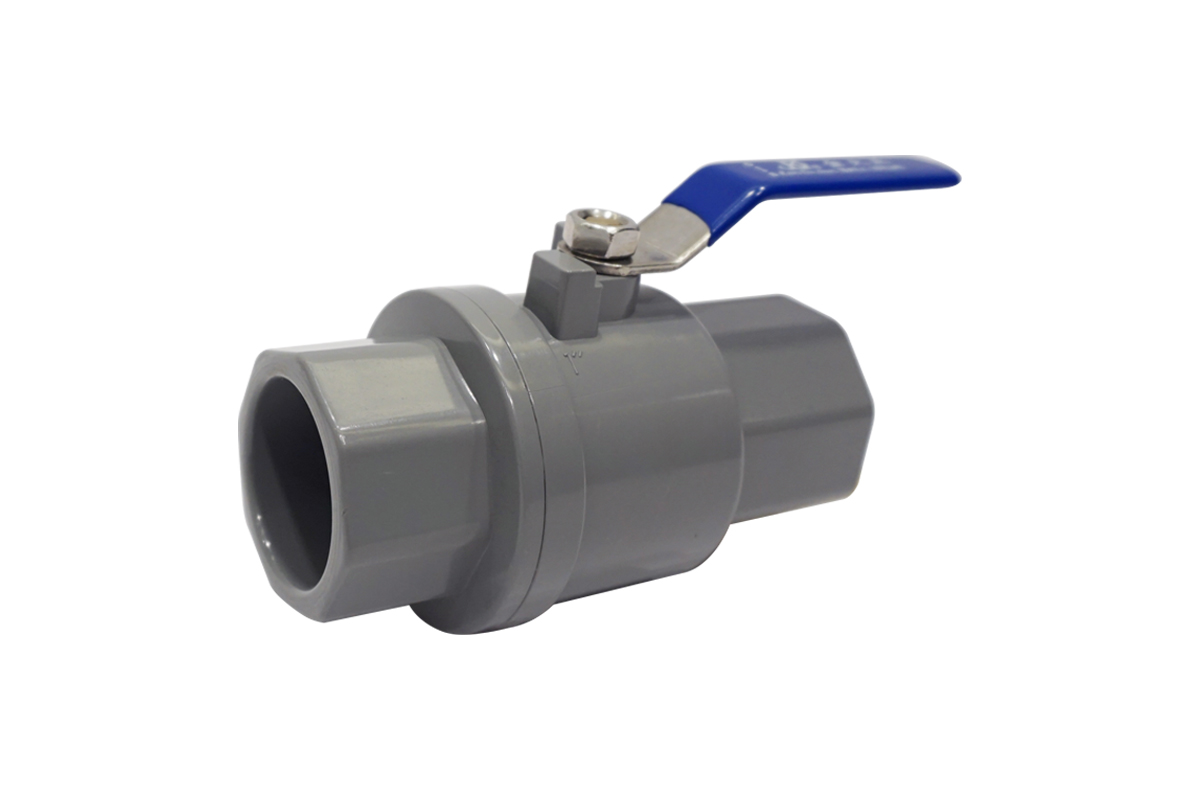

BALL VALVE - Stainless Steel Handle

  • BALL VALVE - Stainless Steel Handle
  • BALL VALVE - Stainless Steel Handle
  • BALL VALVE - Stainless Steel Handle

KDJ-200
BALL VALVE - Stainless Steel Handle

Applocations：

  • Pressure rating : 150PSI @ 23°C ( 73.4°F )
  • 100% full flow design
    Ball Material：
  • SUS304
  • PVC
  • Chromed ABS
Inquiry
Specifications
Model No KDJ-200
Size 1/2" to 6"
Standard ANSI, BS, CNS, DIN, JIS (Socket) NPT, BSPT (Threaded)
Material PVC, UPVC, ABS
Seat EPDM, PTFE, TPR, NBR
O-ring EPDM, NBR, FPM

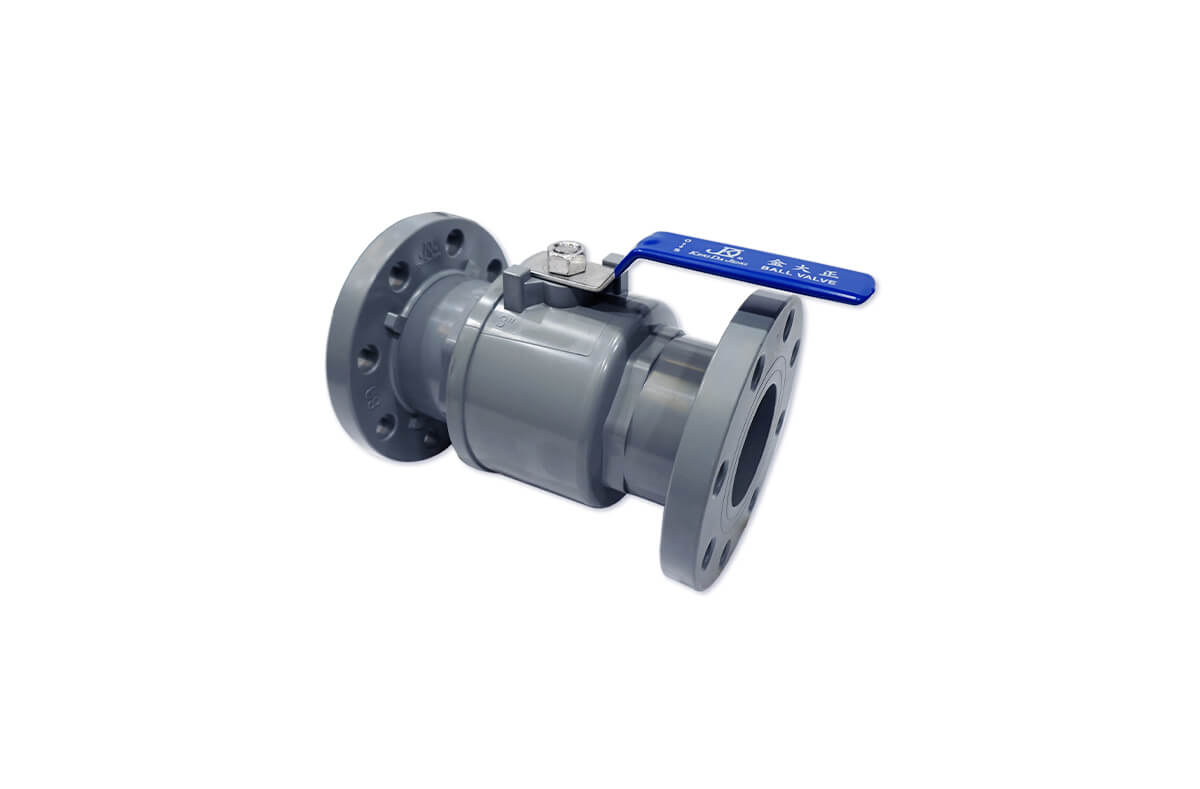

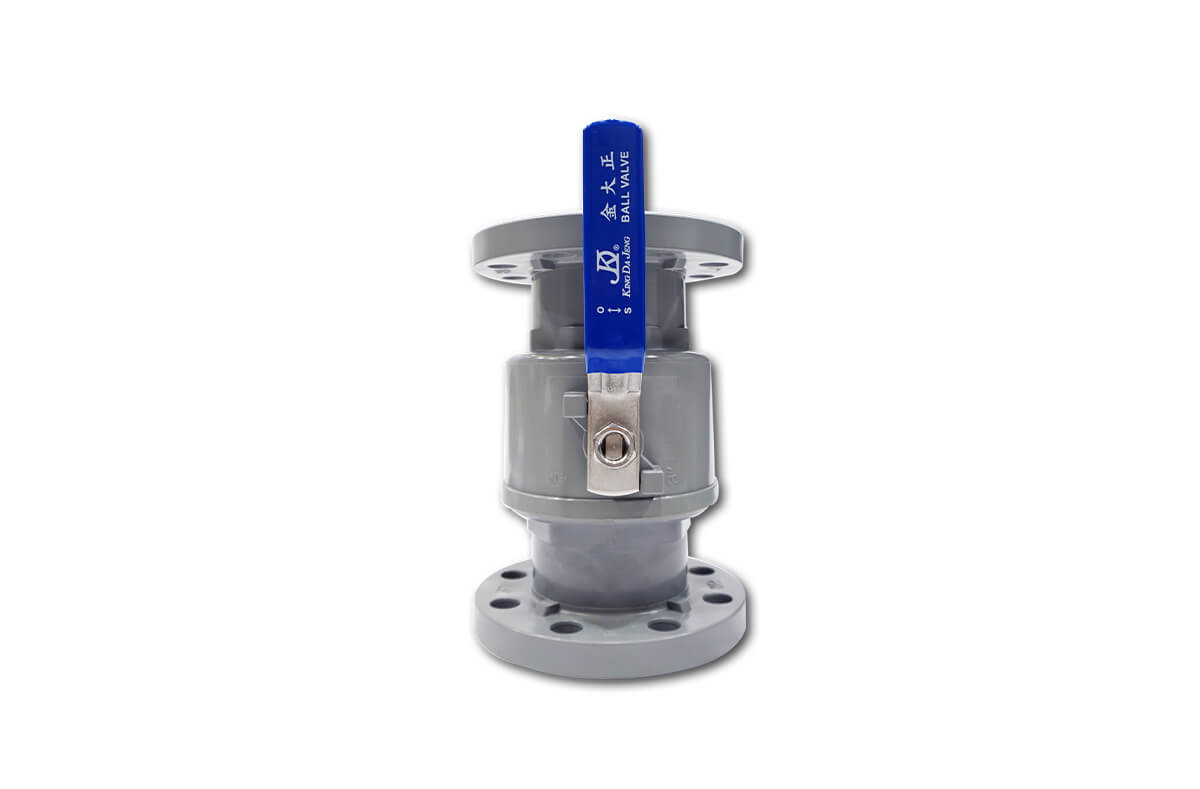

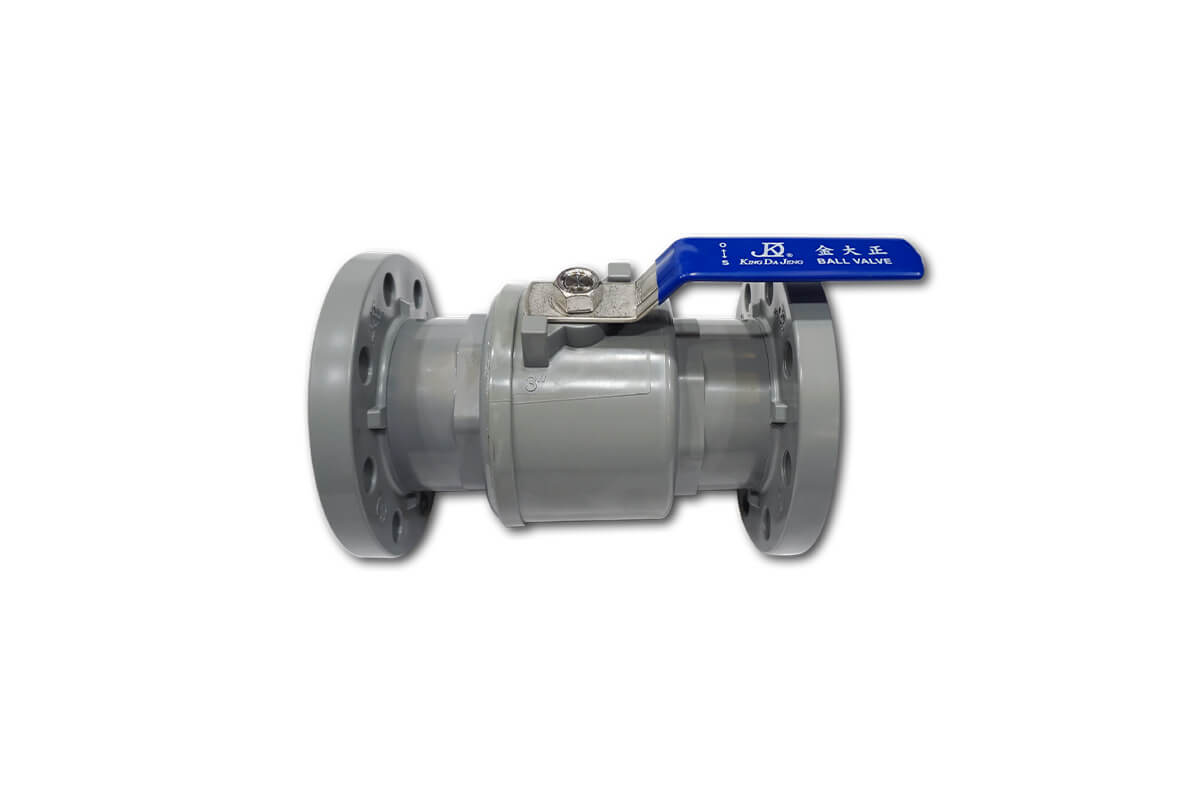

End type Socket, Threaded, Flanged

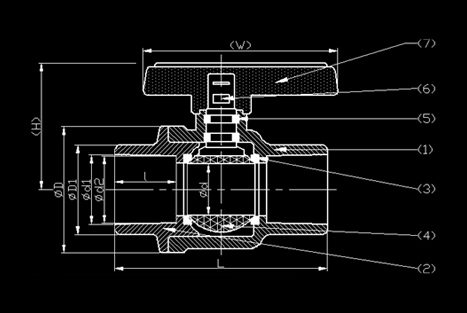

No. Part Material Q'TY
1 Body PVC, UPVC, ABS 1
2 Cap PVC, UPVC, ABS 1
3 Seat Seal EPDM, PTFE, TPR, NBR 2
4 Ball SUS 304, COPPER, ABS 1
5 Stem O-ring EPDM, NBR, FPM 2
6 Stem SUS 304, COPPER 1
7 Handle SUS 304 1
SIZE NOM. 15mm (1/2") 20mm (3/4") 25mm (1") 32mm (1-1/4") 40mm (1-1/2") 50mm (2") 65mm (2-1/2") 80mm (3") 100mm (4") 125mm (5") 150mm (6")
CNS l 21.6 23.7 30 33.8 40 42 57.3 60.8 88.2 104.4 135
d1 22.40 26.40 34.50 42.50 48.60 60.60 76.70 89.70 115.00 141 166
d2 21.90 25.90 33.90 41.90 47.90 59.90 75.90 88.90 113.80 140 165
JIS l 21.6 23.7 30 33.8 40 42 57.3 60.8 88.2 104.4 135
d1 22.30 26.30 32.33 38.43 48.46 60.56 75.87 89.60 114.70 141 166
d2 21.70 25.70 31.67 37.57 47.54 59.44 76.60 88.83 113.98 140 165
DIN l 21.6 23.7 30 33.8 40 42 57.3 60.8 88.2 104.4 135
d1 20.30 25.30 32.30 40.30 50.30 63.30 75.30 90.10 110.40 141 160.5
d2 20.10 25.10 32.10 40.10 50.10 63.10 75.10 89.31 110.10 140 159.7
BS l 21.6 23.7 30 33.8 40 42 57.3 60.8 88.2 104.4 135
d1 21.5 26.9 33.7 42.4 48.4 60.5 75.3 89.1 114.5 141 168.83
d2 21.3 26.7 33.5 42.2 48.2 60.3 75.1 88.8 114.1 140 168
ANSI l 21.6 23.7 30 33.8 40 42 57.3 60.8 88.2 104.4 135
d1 21.54 26.87 33.66 42.42 48.56 60.63 73.38 89.31 114.76 142.3 168.83
d2 21.23 26.57 33.27 42.04 48.11 60.17 72.58 88.70 114.07 141.3 168
d 15 20 25 32 40 50 63 77 100 100 125
D1 29.5 33.5 44 52.3 59.7 72.2 91.5 107.3 132.5 159.3 190
D 44 51 61.2 71.2 84.1 99 125 148 186.3 186.3 239
L 73.8 87 104 119.5 141 155.3 207.3 232 318 348 475
(H) 42 51 61 70 82 97 115 123 151 151 175.5
(W) 66 80 95 111 130 145 206 206 235 235 312
