  4. KDJ-100 BALL VALVE

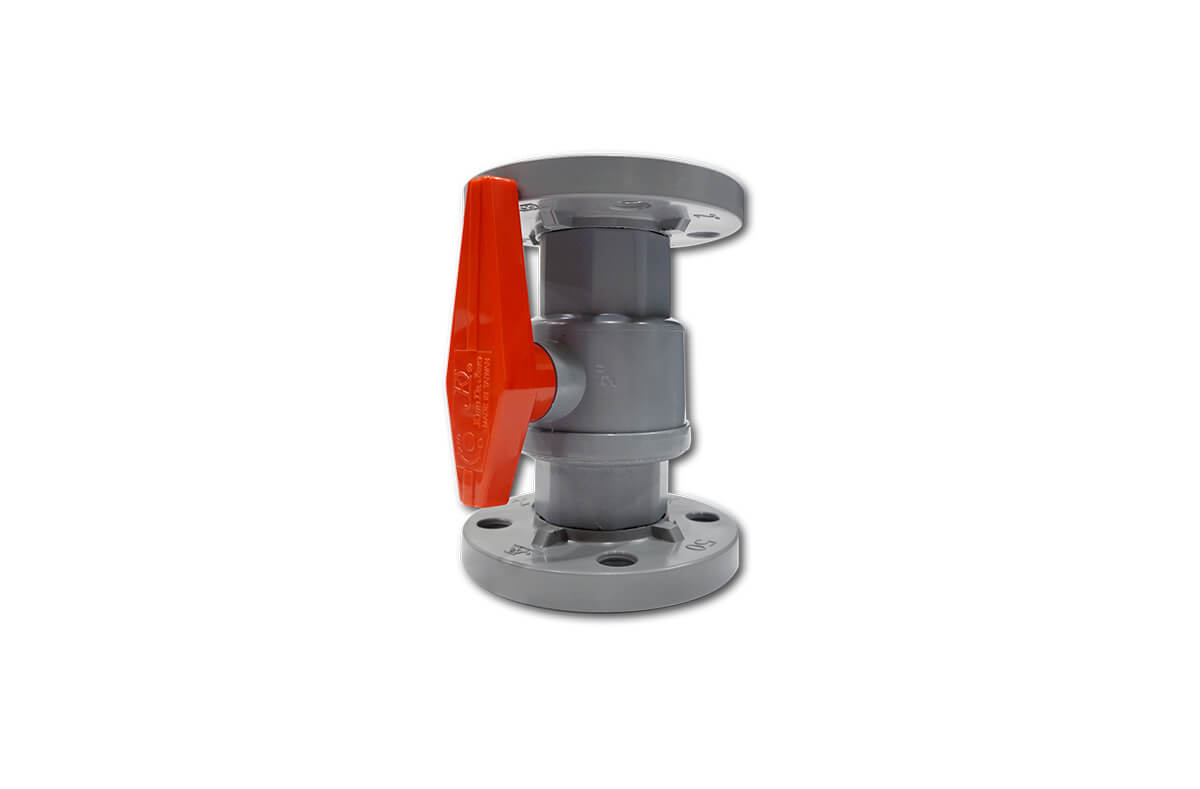

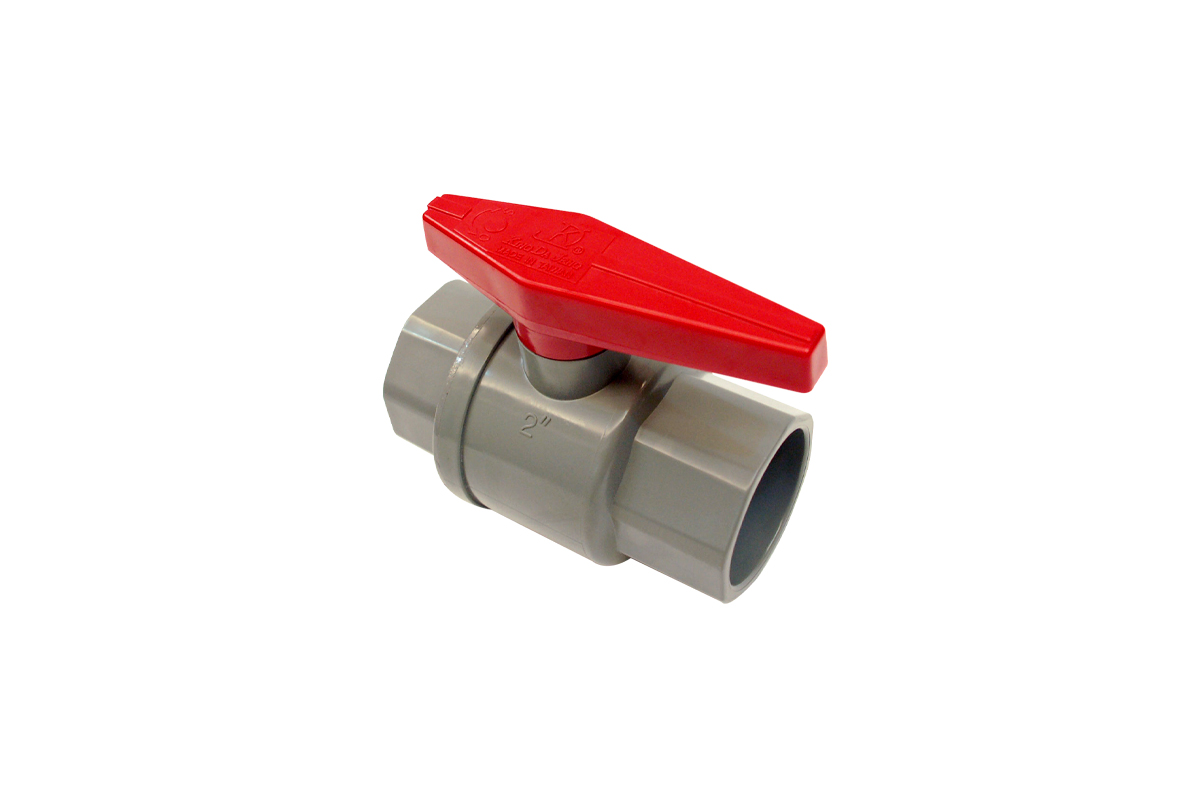

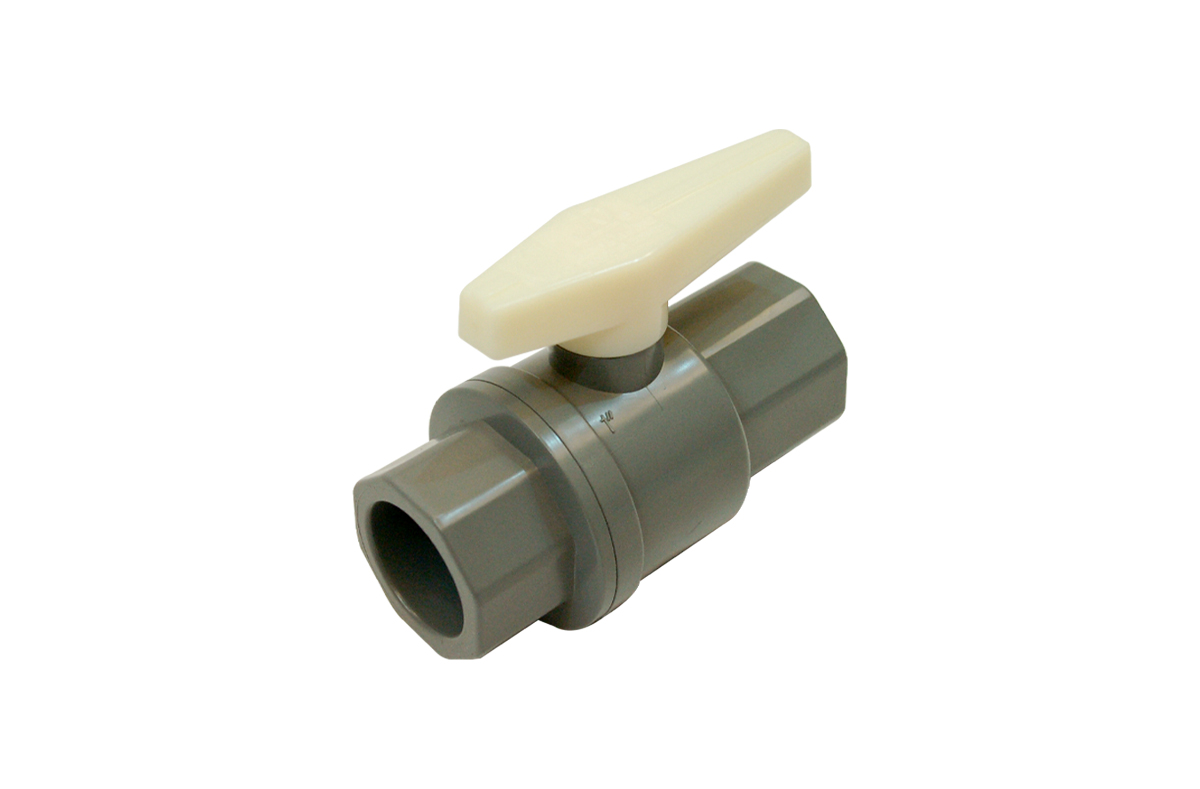

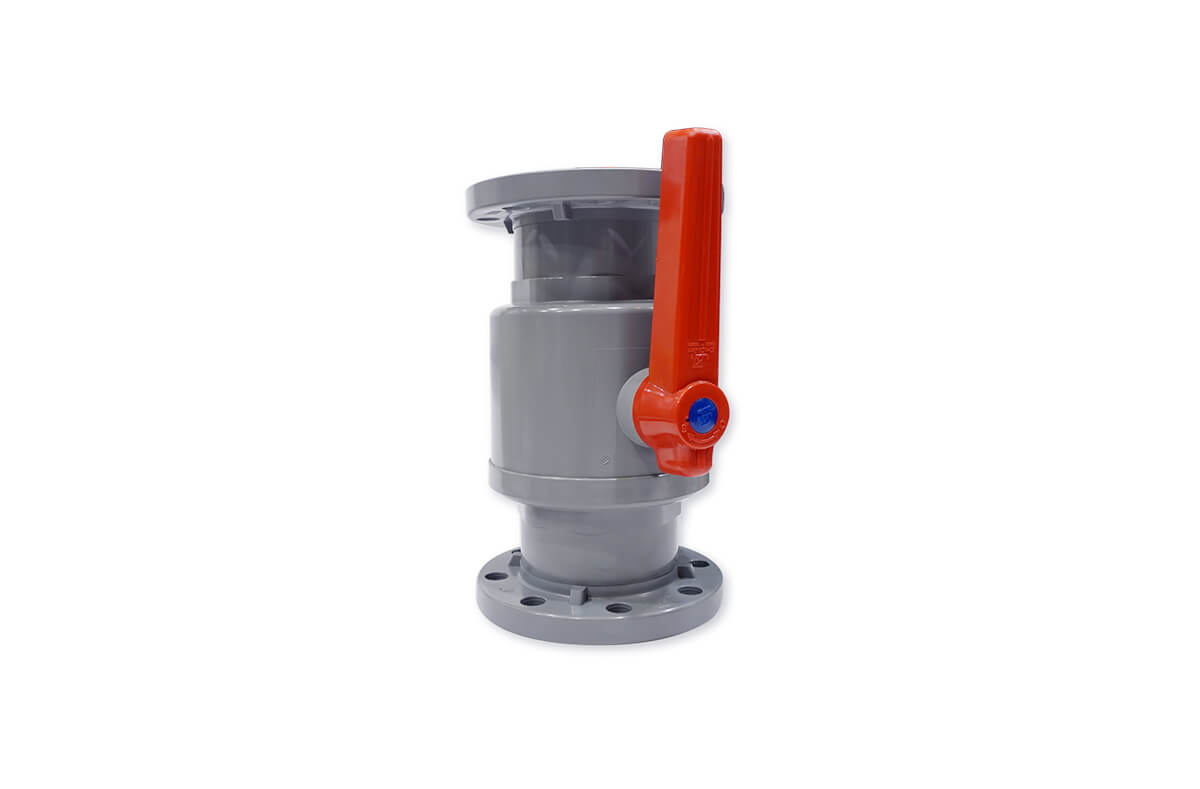

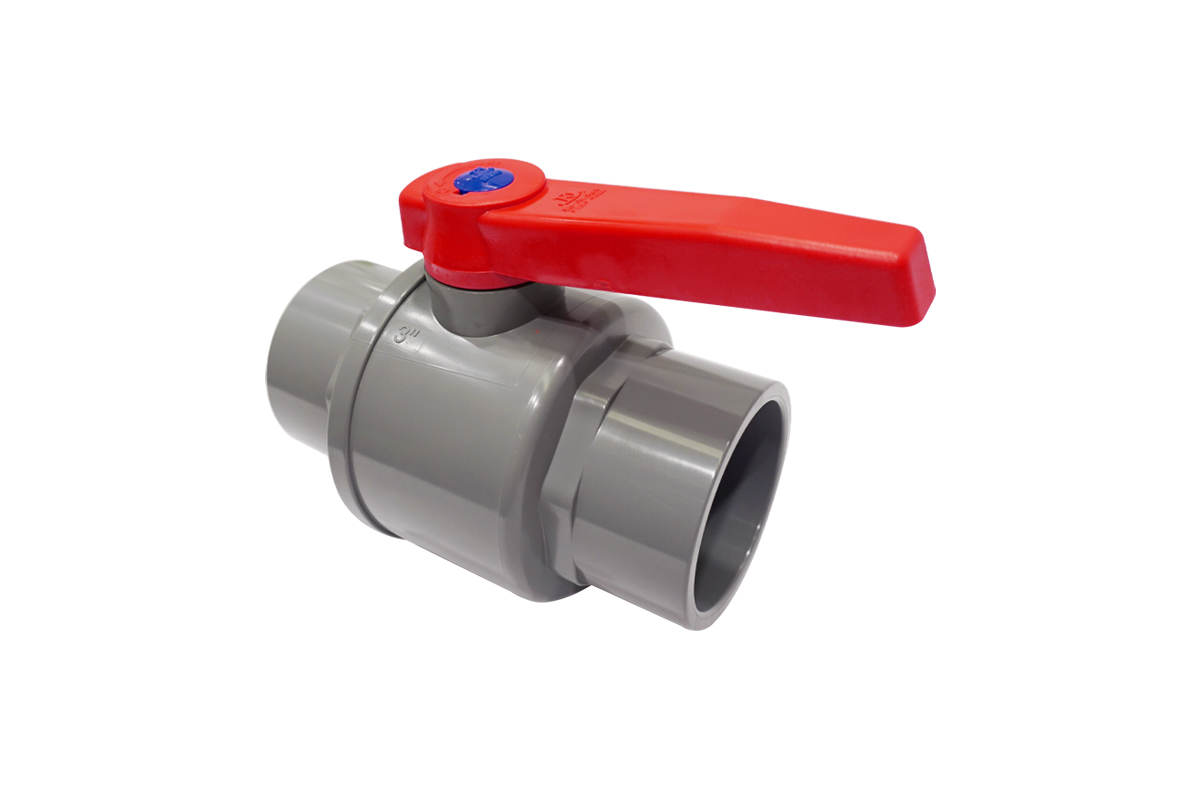

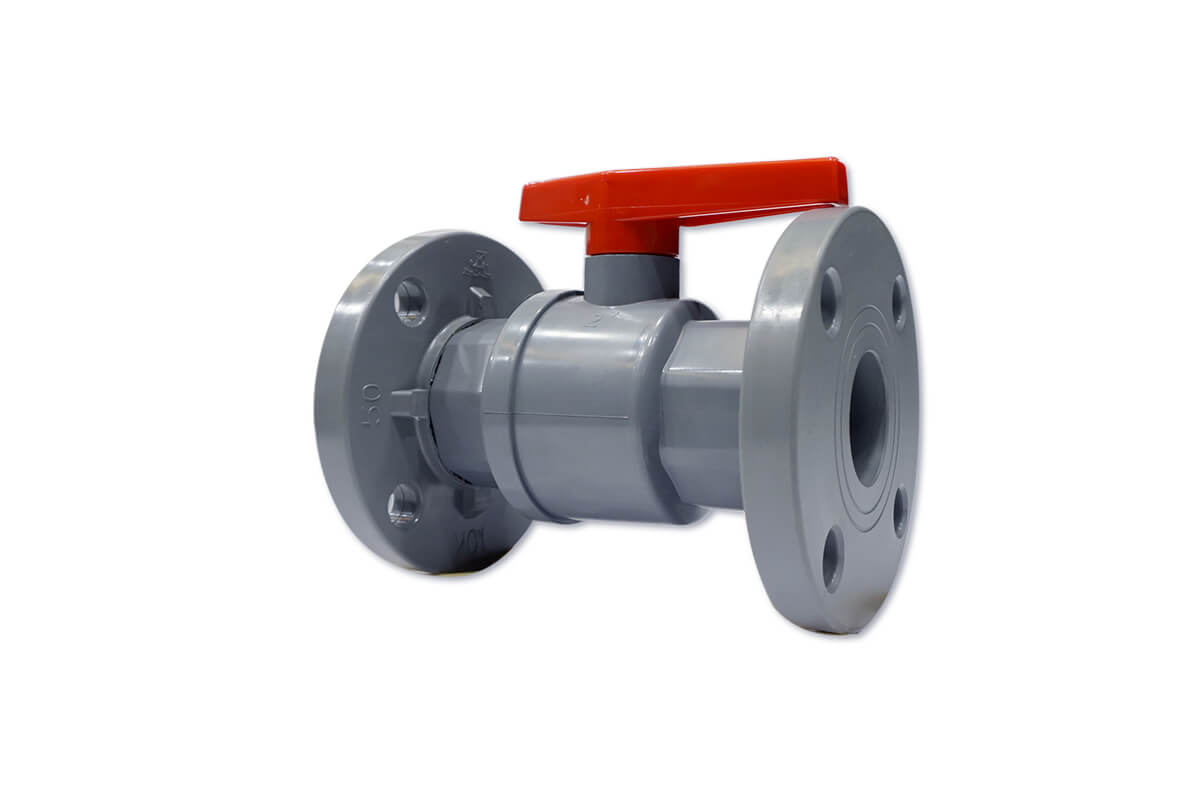

KDJ-100 BALL VALVE

  • BALL VALVE
  • BALL VALVE
  • BALL VALVE

KDJ-100
BALL VALVE

Applocations：

  • Pressure rating : 150PSI @ 23°C ( 73.4°F )
  • 100% full flow design
  • Lower torque and easy to operate
Inquiry
Specifications
Model No KDJ-100
Size 1/2" to 6"
Standard ANSI, BS, CNS, DIN, JIS (Socket) NPT, BSPT (Threaded)
Material PVC, UPVC, ABS
Seat EPDM, PTFE, TPR, NBR
O-ring EPDM, NBR, FPM
End type Socket, Threaded, Flanged

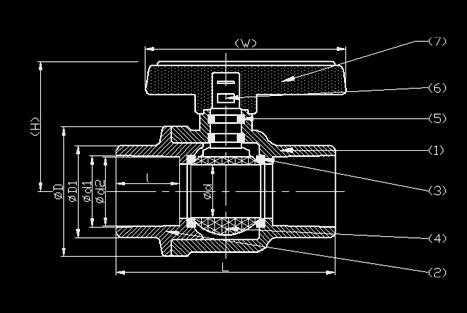

No. Part Material Q'TY
1 Body PVC, UPVC, ABS 1
2 Cap PVC, UPVC, ABS 1
3 Seat Seal EPDM, PTFE, TPR, NBR 2
4 Ball PVC, UPVC, ABS 1
5 Stem O-ring EPDM, NBR, FPM 2
6 Stem PVC, UPVC, ABS 1
7 Handle PVC, UPVC, ABS 1
SIZE NOM. 15mm (1/2") 20mm (3/4") 25mm (1") 32mm (1-1/4") 40mm (1-1/2") 50mm (2") 65mm (2-1/2") 80mm (3") 100mm (4") 125mm (5") 150mm (6")
CNS l 21.6 23.7 30 33.8 40 42 58 63 90 104.4 135
d1 22.40 26.40 34.50 42.50 48.60 60.60 76.70 89.70 115 141 166
d2 21.90 25.90 33.90 41.90 47.90 59.90 75.90 88.90 113.8 140 165
JIS l 21.6 23.7 30 33.8 40 42 58 63 90 104.4 135
d1 22.30 26.30 32.33 38.43 48.46 60.56 76.6 89.60 114.70 141 166
d2 21.70 25.70 31.67 37.57 47.54 59.44 75.87 88.83 113.98 140 165
DIN l 21.6 23.7 30 33.8 40 42 58 63 90 104.4 135
d1 20.30 25.30 32.30 40.30 50.30 63.30 75.3 90.3 110.40 141 160.5
d2 20.10 25.10 32.10 40.10 50.10 63.10 74.9 89.9 109.9 140 159.7
BS l 21.6 23.7 30 33.8 40 42 58 63 90 104.4 135
d1 21.5 26.9 33.7 42.4 48.4 60.5 75.3 89.1 114.5 141 168.83
d2 21.3 26.7 33.5 42.2 48.2 60.3 75.1 88.8 114.2 140 168
ANSI l 21.6 23.7 30 33.8 40 42 58 63 90 104.4 135
d1 21.54 26.87 33.66 42.42 48.56 60.63 73.38 89.6 114.76 142.3 168.83
d2 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.83 114.07 141.3 168
d 15 20 25 32 40 50 63 77 100 100 125
D1 29.5 33.5 44 52.3 59.7 72.2 91.5 107.3 132.5 159.3 190
D 44 51 61.2 71.2 84.1 99 125 148 186.3 186.3 239
L 73.8 87 104 119.5 141 155.3 207.3 232 318 348 475
(H) 42 51 61 70 82 97 115 123 151 151 175.5
(W) 66 80 95 111 130 145 206 206 235 235 312
